Diagnostics
High
-Definition DVR DCX3520e-M • Installation Manual
60
365
-095-25080-x.1
Table 16: RF Upstream Modem Diagnostic Field Descriptions
Field Description
Status
CONFIGURED or NOT CONFIGURED.
Center
Frequency
The RF modem center frequency is displayed on the OSD and front panel in MHz.
Requested
Power Level
The value in dB assigned to the DCX3520e-M during RF leveling (which is blank if it is not configured).
Actual
Power Level
The power level is displayed in dB on the OSD and front panel or is blank if the power level has not been set.
Report Back
Address
Displayed in 4-byte hexadecimal format, if configured.
Code Modules
This diagnostic includes information about the firmware loaded in flash memory and all non-volatile
code versions that are installed on the DCX3520e-M. When the native suite is running, the diagnostics
of the application operating system and all associated objects should be accessible.

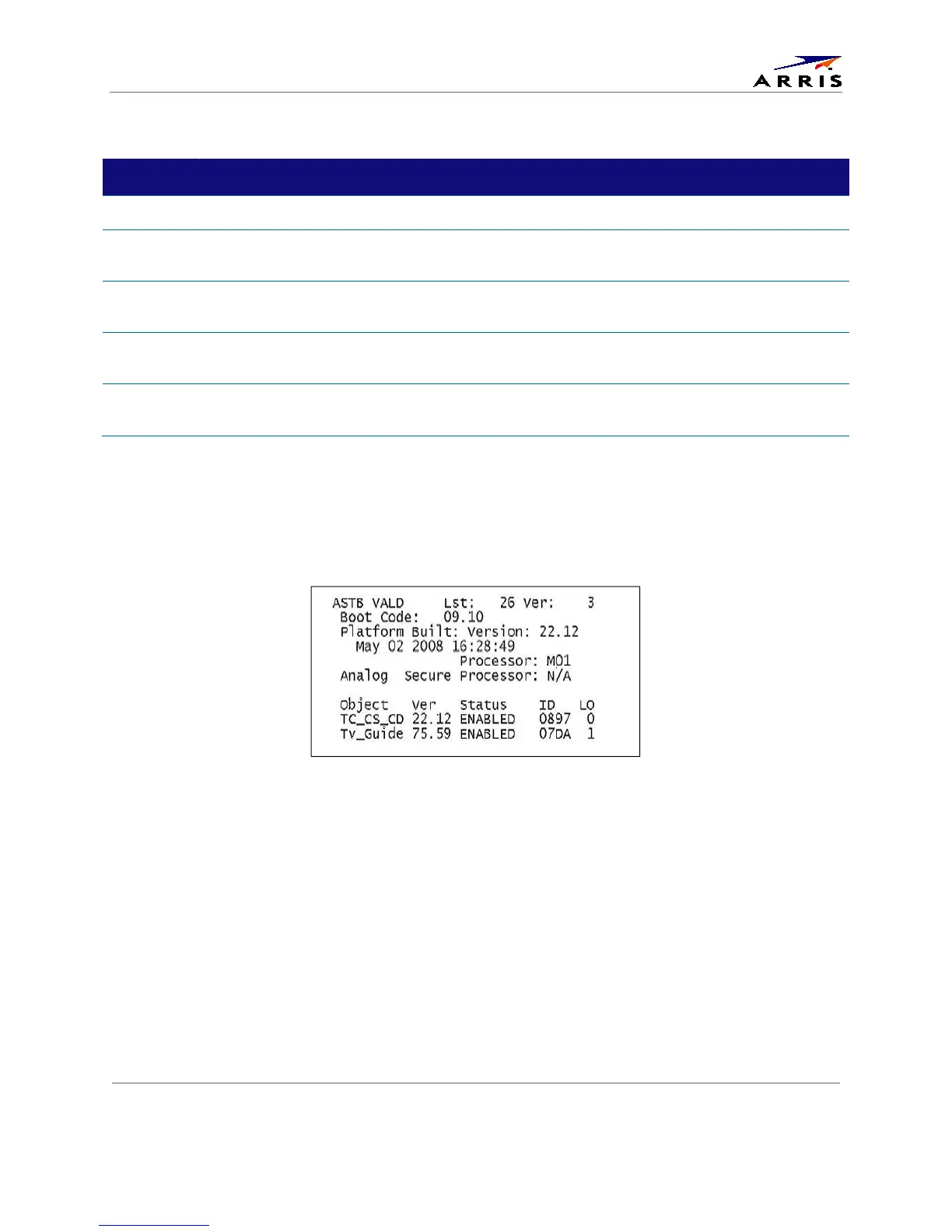

Figure 35: Code Modules Diagnostic Screen
