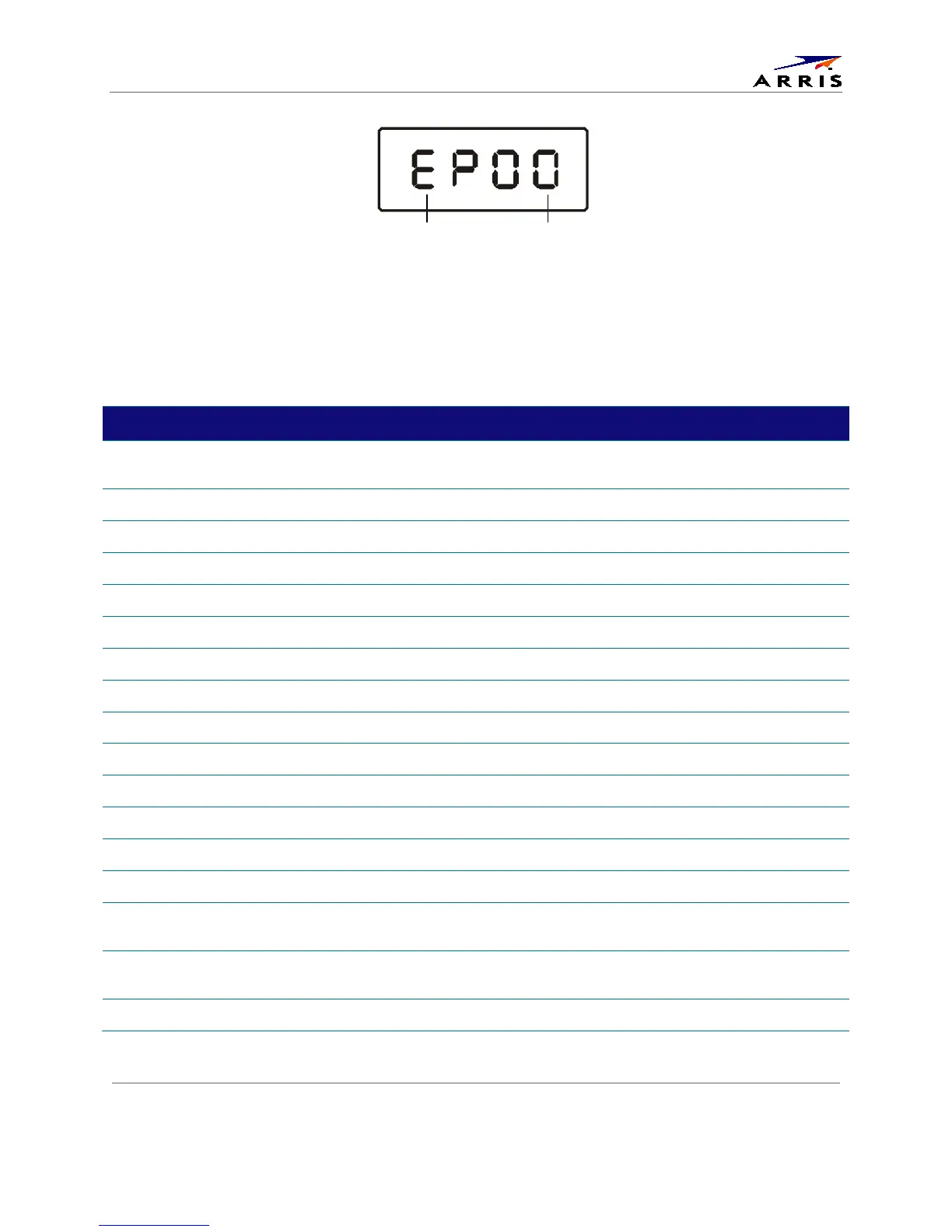

Figure 22: Example General Status display (no error)
Table 10: General Status Diagnostic Field Descriptions
Field Description
Error
Error codes display on the LED and OSD when an error occurs. If multiple errors occur, the last
recorded error is displayed:
Error Code Description
EP00 No error
EP01 Not connected
EP03 DRAM error
EP04 SRAM error
EP07 ROM verification failure
EP08 RAM test failure
EP09 Battery test failure
EP11 Invalid unit address
EP12 Power on self test failure
EP14 GITV startup failure
EP15 TSI structure corrupt
EP18 Driver initialization failure
Connected State
A DCX-operations connect or disconnect message determines whether the DCX3520e-M is
CONNECTED or DISCONNECTED.
Platform ID
A unique 16-bit hexadecimal number that identifies the platform image (also called the
ROM ID).
Family ID
The manufacturer and product family, in hexadecimal.
Environment code
Error code
