Arris DCX3520e-M - Interface Status; Figure 39: Interface Status Diagnostic Screen

Diagnostics
High
-Definition DVR DCX3520e-M • Installation Manual
69
365
-095-25080-x.1
Interface Status
The Interface Status diagnostic displays when running in Thin Client. There is no LED display. The
information on the OSD is updated when you display the diagnostic.

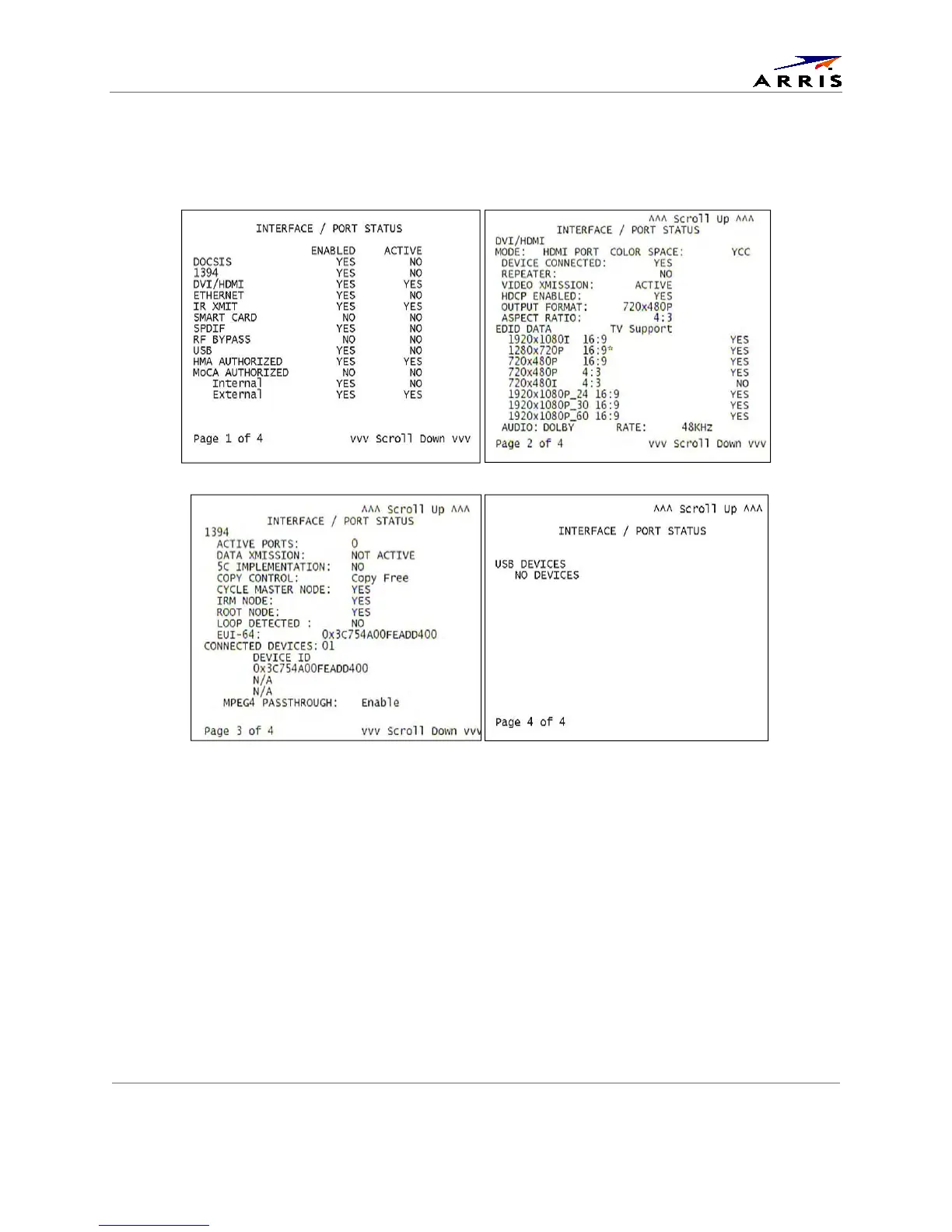

Figure 39: Interface Status Diagnostic Screen
