Out-Of-Band (OOB) Status
This diagnostic indicates the out-of-band control channel status. The information is updated every five
seconds.

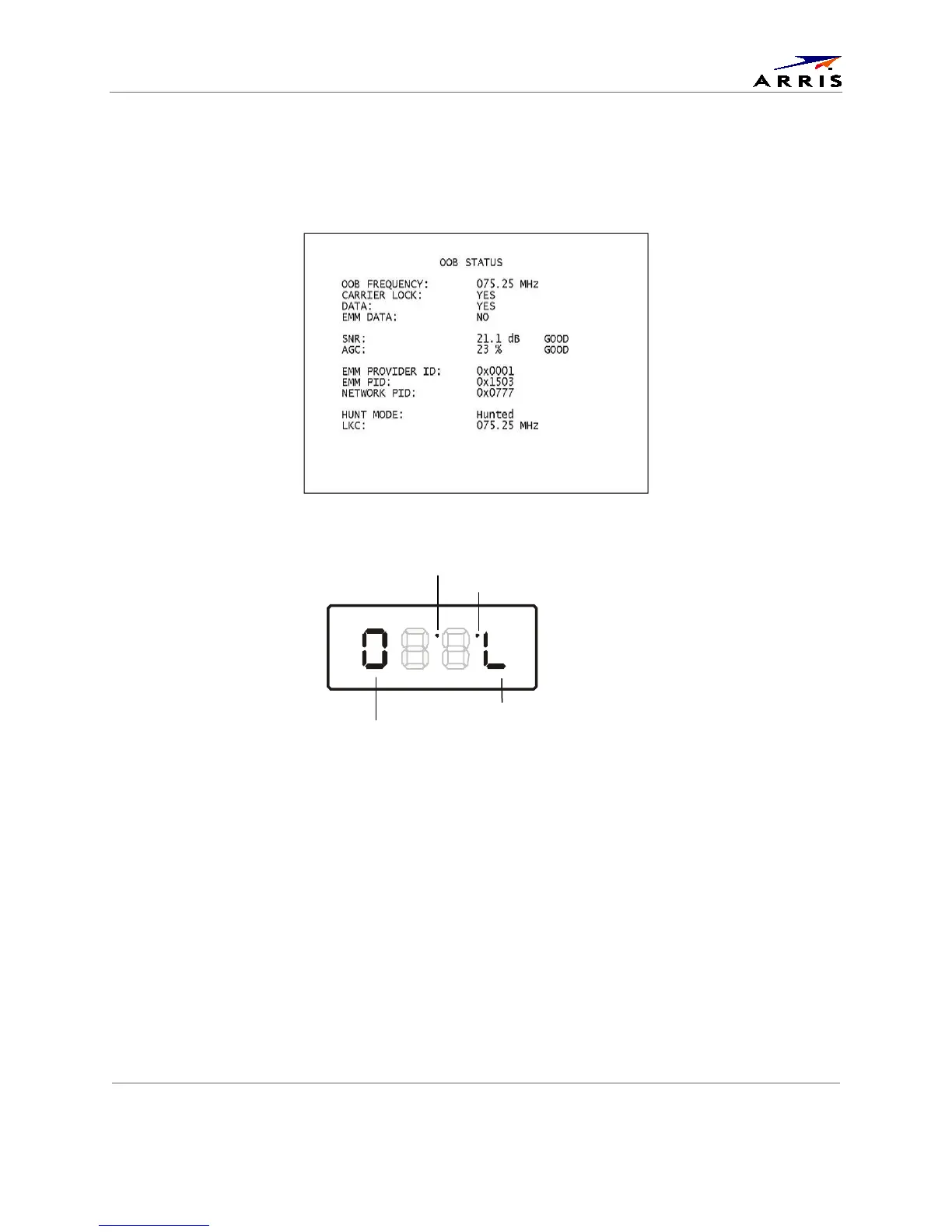

Figure 25: OOB Status Diagnostic Screen
Figure 26: Front panel display for the OOB diagnostic
Data activity
indicator
EMM data activity
indicator
OOB
diagnostic
indicator
Carrier lock indicator
(L = locked, U = unlocked)
