Arris DCX3520e-M - Figure 9: Connecting an A;V Receiver, SDTV, and VCR;DVD

Installation
High
-Definition DVR DCX3520e-M • Installation Manual
22
365
-095-25080-x.1

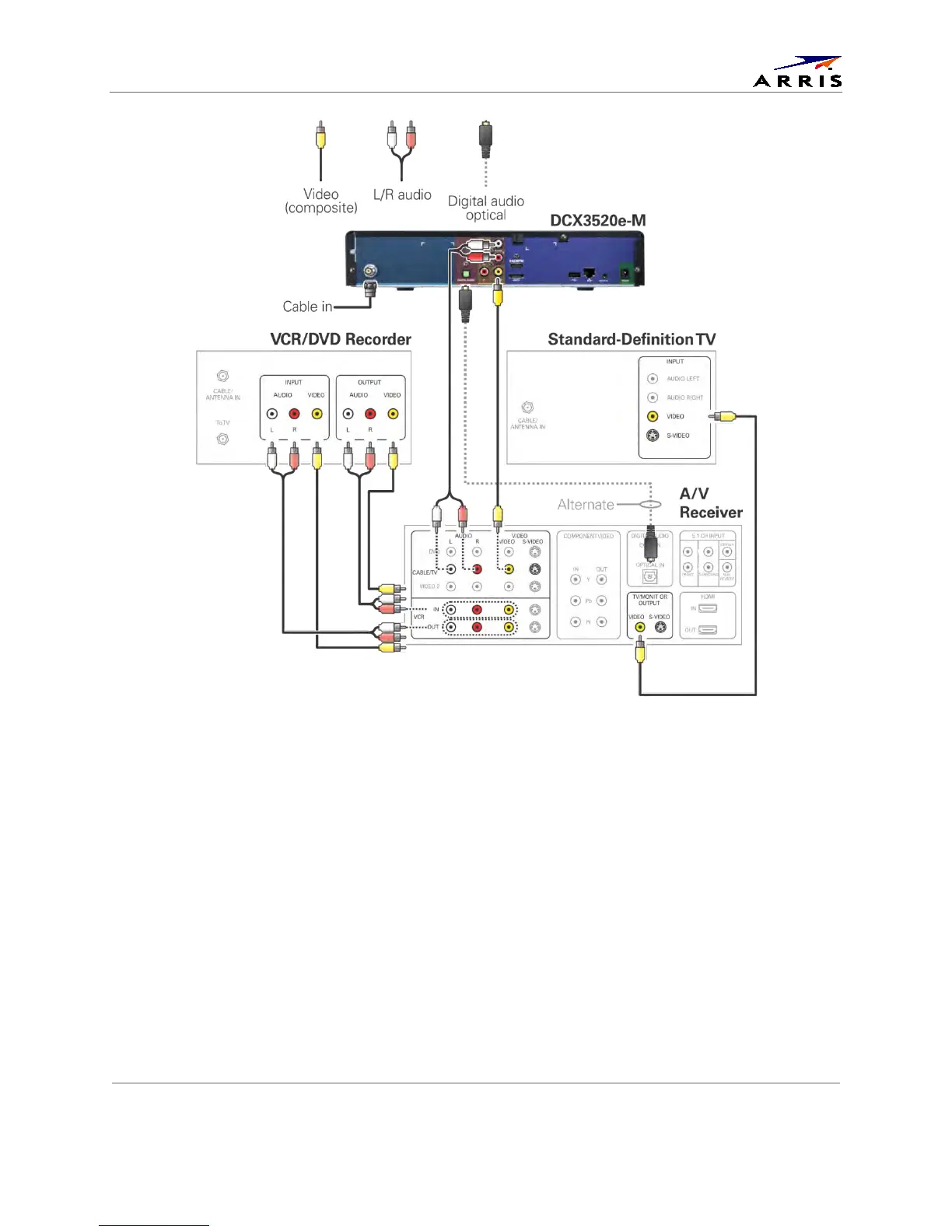

Figure 9: Connecting an A/V Receiver, SDTV, and VCR/DVD
Note: Solid lines indicate optimum connections.
Note: Consult your A/V receiver manual for additional wiring options or constraints when including a
VCR/DVD Recorder in your configuration.
