Connecting a Standard-Definition TV (SDTV)
1. Connect the stereo audio cable to the AUDIO L and R connectors on the DCX3520e-M series set-top
and the AUDIO L and R connectors on the SDTV.
2. Connect a video cable to the VIDEO OUT connector on the DCX3520e-M series set-top and the
INPUT VIDEO on the TV.
Note: These video connection methods do not support HD video. If you have an HDTV, see Connecting an
HDTV — Separate Video/Audio Connections.

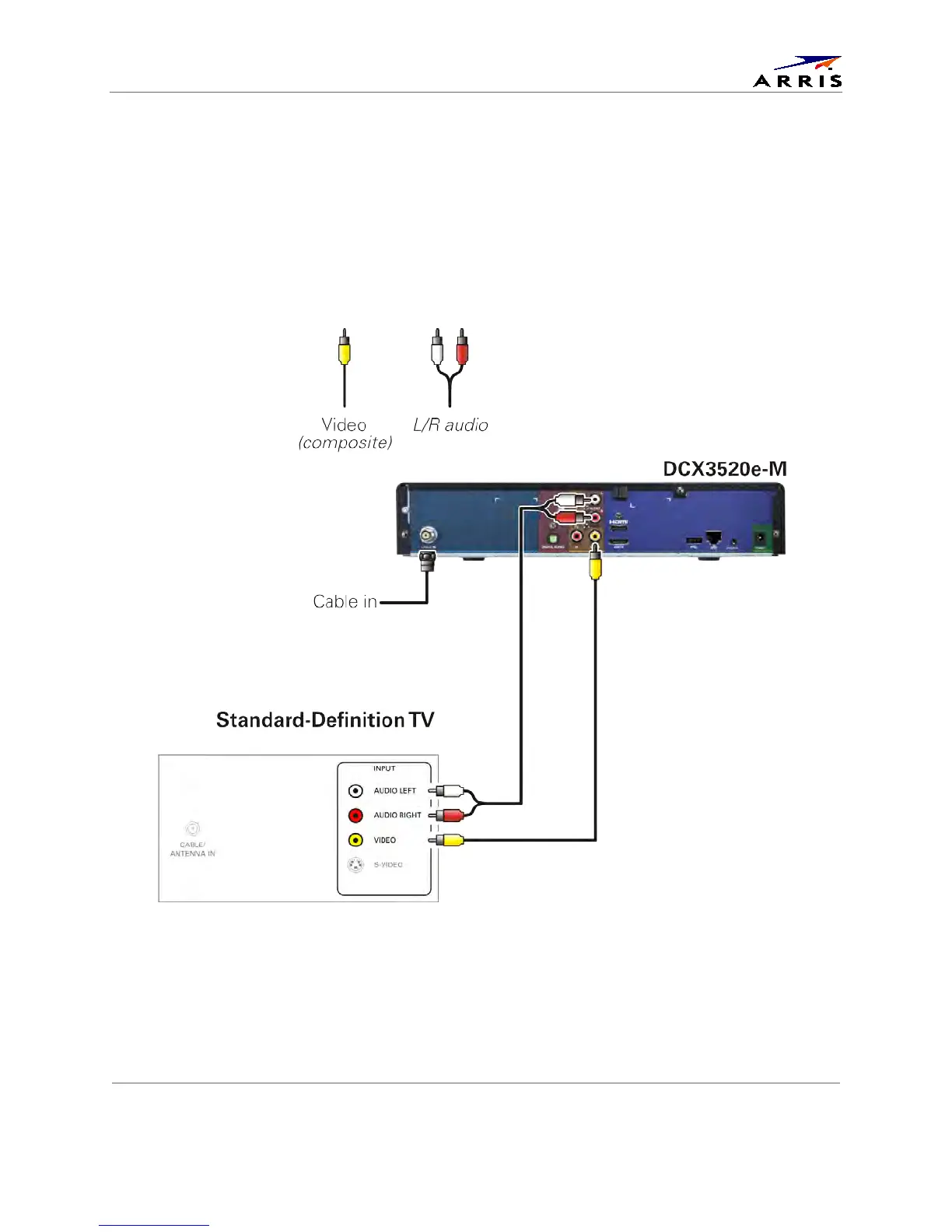

Figure 7: Connecting a Standard-definition TV (SDTV)
Note: Composite video requires separate audio connections.
Note: Only one video connection and one audio connection are required.
Note: Solid lines indicate optimum connections.
