Arris DCX3520e-M - Rear Panel; Figure 3: Rear Panel

Overview
High
-Definition DVR DCX3520e-M • Installation Manual
7
365
-095-25080-x.1
Rear Panel

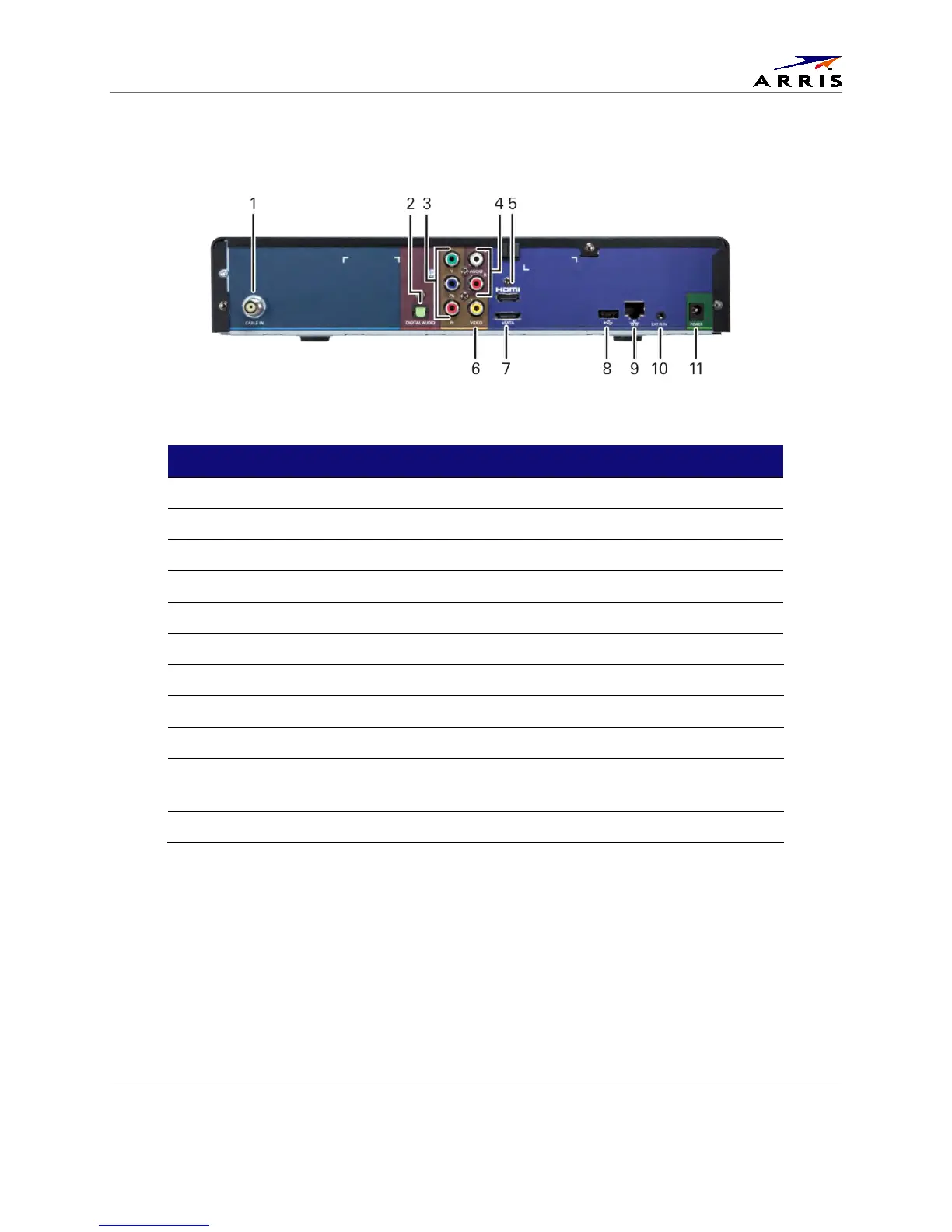

Figure 3: Rear Panel
Number Description
1 Cable In — Connects to cable signal from your service provider
2 Digital Audio (Optical S/PDIF) — Provides Dolby
®
Digital or PCM output
3 Video outputs / YPbPr — Component video output (HDTV)
4 Audio Out — L/R audio
5 HDMI — High-Definition TV (HDTV) connector
6 Video Out — Composite Video (SDTV)
7 eSATA* — External Serial Advanced Technology Attachment disk interface
8 USB* 2.0 — High-Speed peripheral device connection
9 Ethernet* — Network connection
10 External IR Input — Connects to a remote control set-top accessory cable
Data test connector (service personnel only)
11 Power connector
* Availability of certain features is dependent upon application support.
