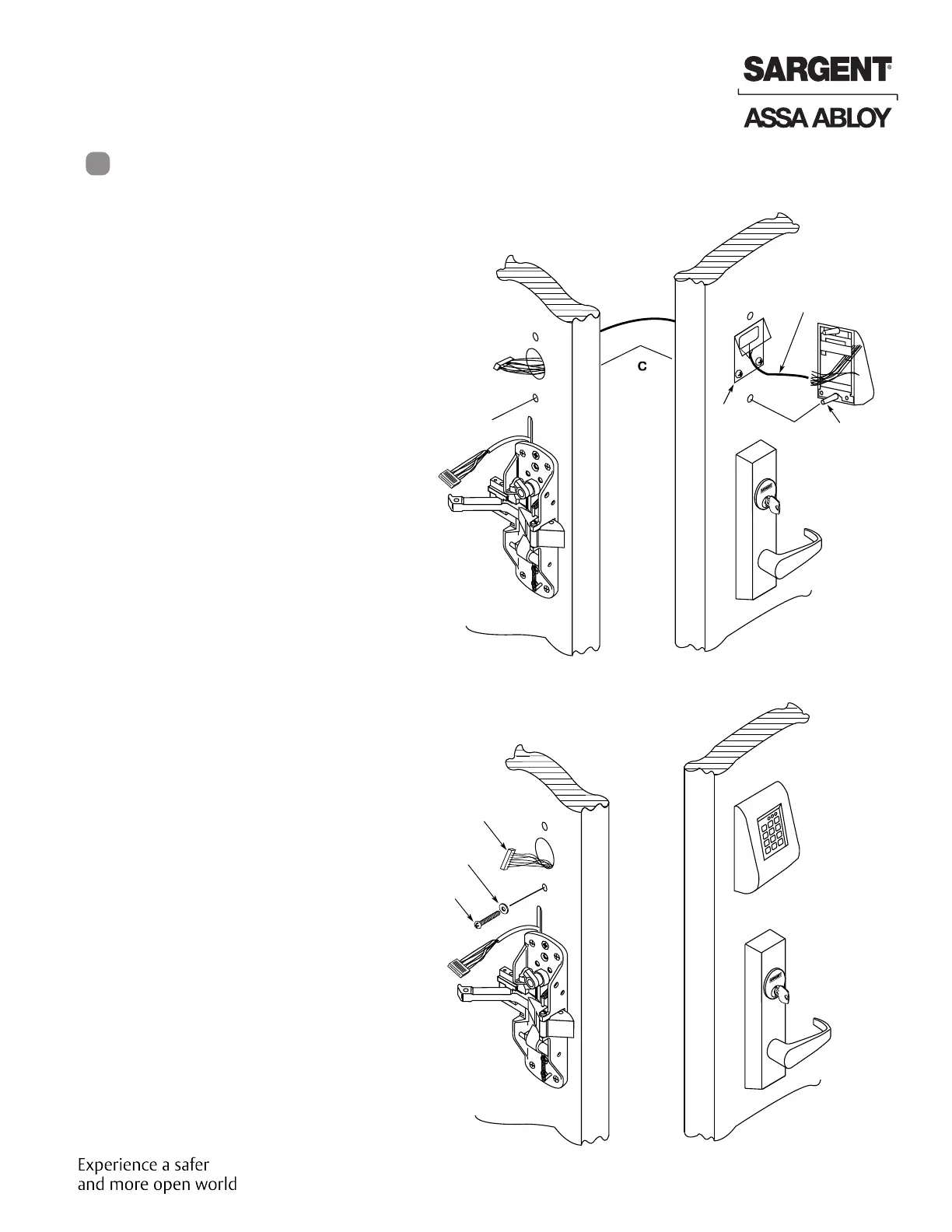

Assa Abloy Sargent KP Series - Step #5 Outside Keypad Escutcheon

Inside
of door
C
Lower
lug
Fire
stop
plate
Connector & Wires
go through fire stop
plate
Lower
lug
Outside
of door
Inside of
door
Connector &
wires through
fire stop plate
Flat
washer
#8-32 Pan head
screw
Inside
of door
Outside
of door
Rim Installation Instructions for
KP8800 Series (Continued)
• From the inside of the door, use
#8-32 x 1-1/4” pan head screw
with the flat washer to attach the
escutcheon using the lower lug
• Straighten keypad escutcheon
and tighten #8-32 x 1-1/4”
pan head screw
Step #5 Outside Keypad Escutcheon
7
