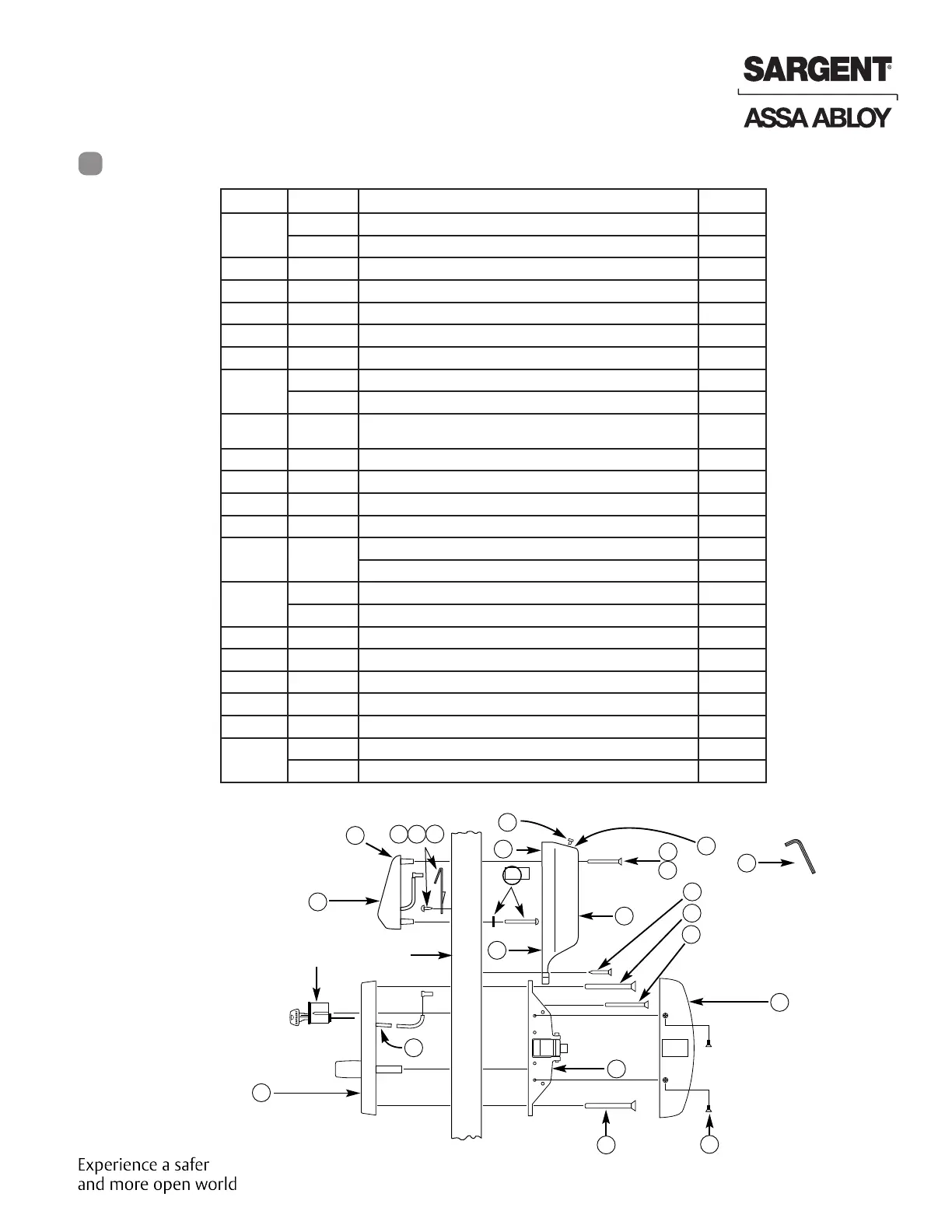

Parts Breakdown
ITEM # PART # DESCRIPTION QTY
1 52-2340 *Outside Escutcheon Assembly (with keypad assy) 1
52-0004 *Outside Escutcheon only 1
1a 52-2299 Keypad (with ribbon cable) less escutcheon 1
1b 52-2303 Screw Pack (Includes 1c, 1d, 2d, 2e) 1
1c 52-0033 Fire Stop Plate 1
1d 01-1500 Fire Stop Plate screws 2
52-0254 Optional Keypad Weatherseal Gasket (exterior use), not shown 1
2 52-2302 *Inside Escutcheon Assembly (with controller assy) 1
52-0087 *Inside Escutcheon only 1
2a 52-6085 Replacement Inside Controller Assembly Kit
(with battery housing)
1
2b 52-0069 Housing Cover 1
2c 01-1212 Security Screw 1
2d 01-0297 Security Tool 1/8” (not provided) 1
2e 01-1119 Top Escutcheon thru-bolt 1
*3 Consult
Factory
*ET Assembly (with cylinder & motor assy) 1
*ET Assembly (without cylinder & motor assy) 1
3a 68-7546 Motor Actuator Assembly 1
52-5654 Ecoflex ET Harness 2
3b 01-4451 ET thru-bolts 2
3c 13-0074 Cylinder Retaining screws 1
52-0263 Optional ET Trim Weatherseal Gasket (exterior use), not shown
4 68-4261 Center Case Assembly - LHRB & RHRB (standard) 1
4a 68-4263 Center Case Assembly - LHRB (12-) & RHRB (12-) 1
4b 68-0406 *Chassis Cover 1
97-0052 *Chassis Cover screws 4
* Specify finish
3
1a
8877
ONLY
(#34)
1
Door
3a
2a
1b
2b
Outside of door Inside of door
2
4
3b
2
1b
2e
2b
1b
3b
3c
4b
2d
4a
1b 1c 1d
2c
Copyright © 2014. 2021, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/28/21
5 A7137D • 800-810-WIRE (9473) • www.sargentlock.com
KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
6
