NOTE: Fire stop plate is required
on all fire-rated doors
CL OF 1-1/2” Dia.
1-1/2’’ Dia.
(2) 1/8” Dia. hole can be
drilled if the door is not
supplied with them
1-1/2’’
7/8’’
Slot
(2) Self tapping screws #8
x 1/2” for wood & metal
doors
Inside of
door
Outside of
door

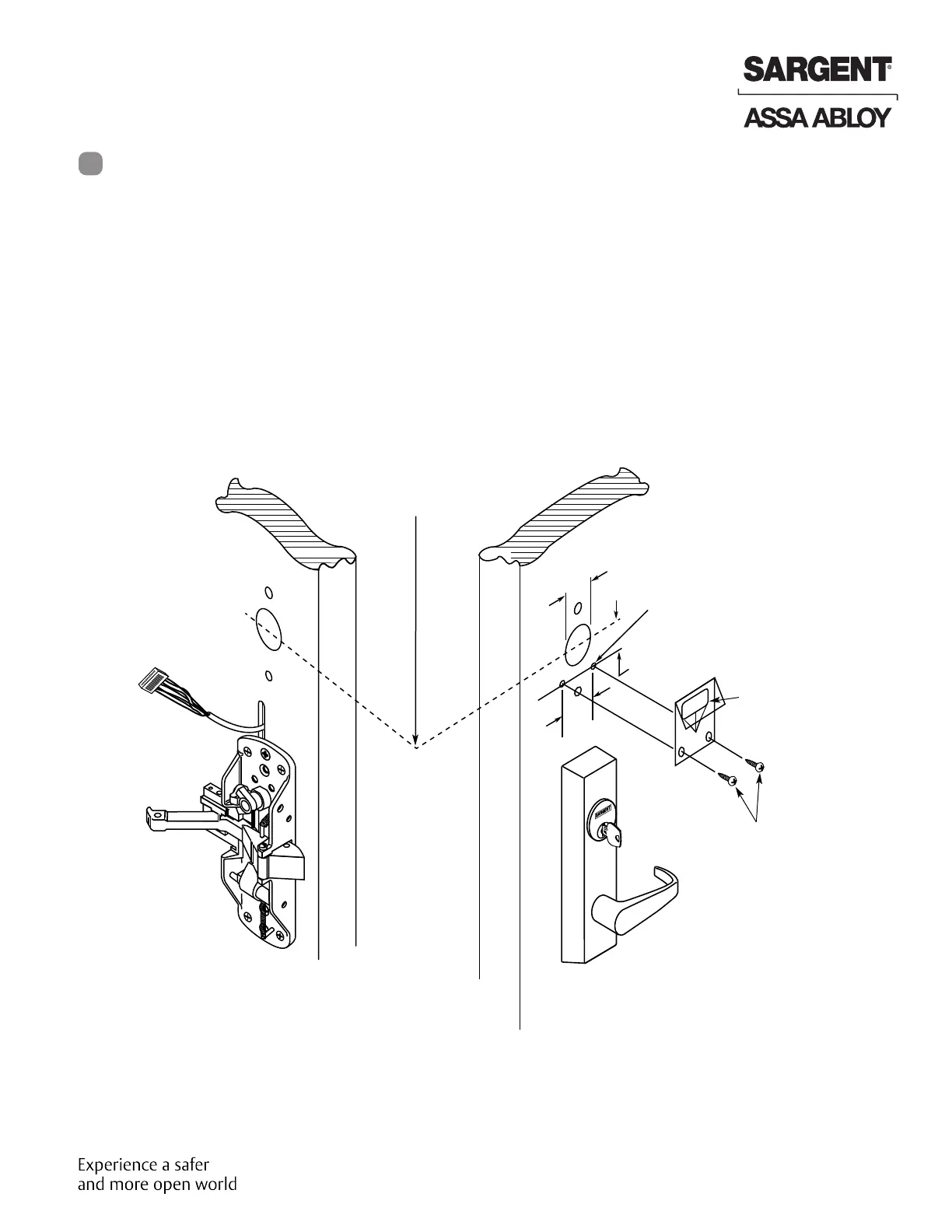

Rim Installation Instructions for KP8800 Series (Continued)
Fire-rated doors require a fire stop plate on the outside of the door (Fig. 4A).
1. Drill (2) 1/8” x 1-1/4” deep holes in the door if not already present.
Refer to template for fire-stop prep locations.
2. Attach with flap up and out using (2) #8 x 1/2” self-tapping screws for wood
and metal doors.
A. Fire Stop Plate (P/N 53-0033)
Step #3 - Exterior Door Options
7
Copyright © 2014. 2021, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/28/21
9 A7137D • 800-810-WIRE (9473) • www.sargentlock.com
KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
