Rim Installation Instructions for KP8800 Series (Continued)
(#34)
Cylinder
Outside
of door
Gasket
ET control
Outside
of door
Inside of
door
(2) 1/4 - 20 x 2 3/8’’
Flat head machine
screws
Wire harness
Exit chassis
Exit chassis
Wire harness
(4) #10 Wood screws or
#10-24 machine screws
(2) #12-24 x 1- 7 ⁄ 8 ‘’
connecting screws
Inside
of door

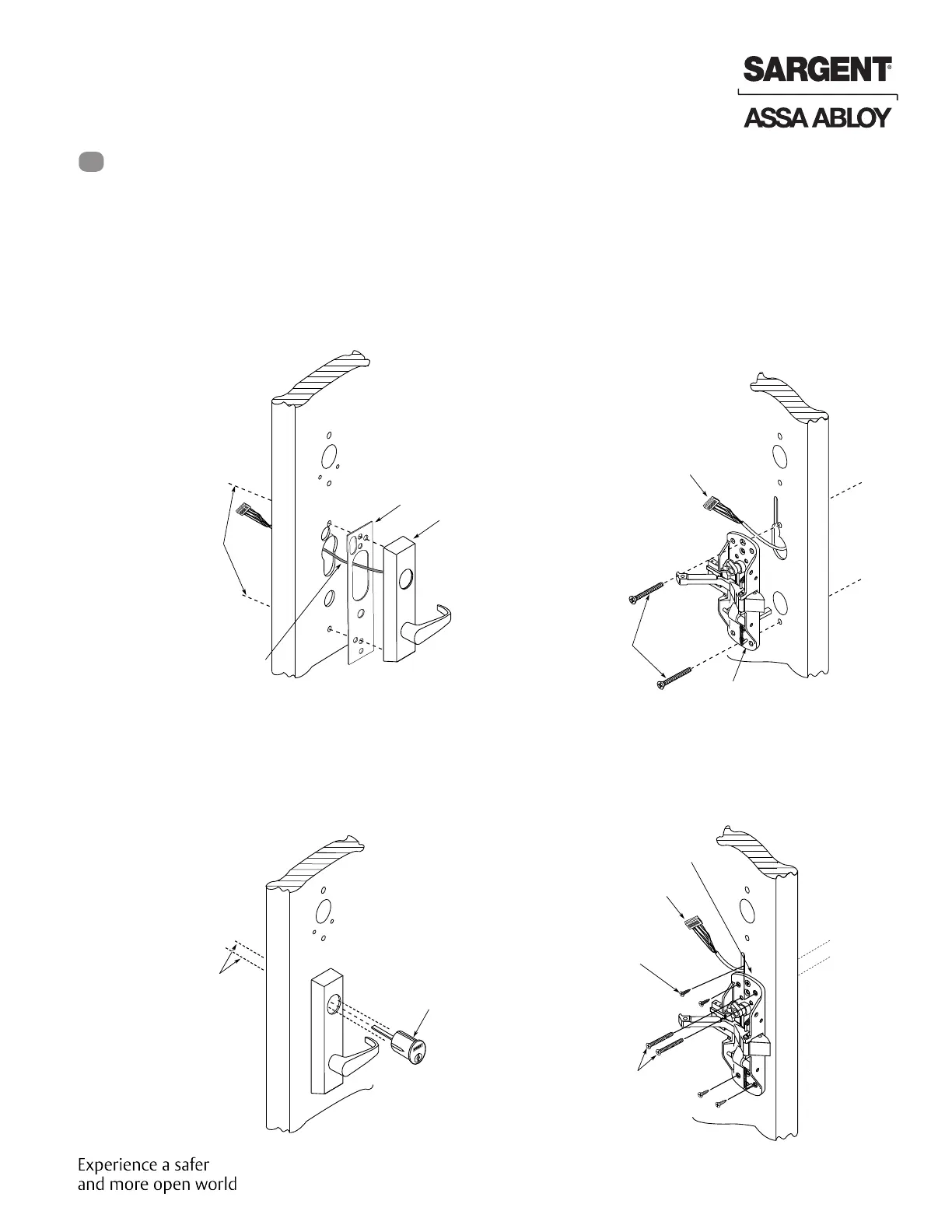

1. Outside Trim
• For exterior applications “ET” gasket (52-0263)
should be used to seal between “ET” escutcheon
and outside door surface
• Route harness through under cut of cylinder hole
and out to other side of door
• Mount “ET” control onto door
Center line for
(2) 1/4 - 20 x 2-3/8’’
flat head
machine screws
3. Cylinder Installation (KP8877 & 12-KP8877)
• Insert cylinder into “ET” control
• Mate cylinder tailpiece into hub of exit device
chassis
• Make sure “ET” harness is clear of cylinder and
cylinder tailpiece
C For (2) #12-24 x 1-7/8”
connecting screws
2. Inside Trim
• Route “ET” harness along track cutout for wood doors and
access hole for metal doors
• Mount exit chassis carefully. DO NOT PINCH HARNESS WIRES
• “ET” spindle will engage into the hub of exit device chassis
• Secure chassis with (2) 1/4-20 x 2-3/8” flat head-
machine screws
4. Securing Cylinder
• Secure cylinder to exit chassis using (2) #12-24
x 1-7/8” connecting screws
• Fasten exit chassis to door using (4) #10 wood
screws or #10-24 machine screws
5
Step #2 Install Outside & Inside Trim
Wire
harness
7
Copyright © 2014. 2021, Sargent Manufacturing Company, an ASSA ABLOY Group company. All rights reserved.
Reproductions in whole or in part without express written permission of Sargent Manufacturing Company is prohibited.
02/28/21
8 A7137D • 800-810-WIRE (9473) • www.sargentlock.com
KP8877/KP8878 x ET x Lever Design
Keypad Operated RIM Exit Device
