Instructions for Installation of
Keypad Rim & Mortise Exit Devices
KP8877 / KP8878
KP8977 / KP8978
All of the following procedures start with 99# (continued).
If after the last “ *” is depressed, the yellow LED does not go out, depress “ *” once more.
To Interrogate Transaction Log (to output last 15 entries):
• Supervisory or Master Code* (Yellow LED Begins to Blink Slowly)
• 70# 0# 0# (Yellow LED Blinks Slowly)
• * (Yellow LED Begins to Blink Quickly)
• Set DTD to printer mode
• Select ‘Infrared Capture’
• Press Enter key on DTD
• Hold DTD between 1 to 3 inches from the KP keypad infrared LED
(top right side LED on keypad). Press Enter key on DTD.
• * (Yellow LED Begins to Blink Slowly or alternately) IR LED will begin
broadcasting data, and the DTD will retrieve door transaction log.
Door # 5666
Seq User Trans
1 001 003
2 003 005
3 003 005
4 020 005
5 003 005
Door Number
Transaction
Number
User Number
Transaction
Type*
Note: Retrieving the transaction log takes approximately 20
seconds, after 20 seconds continue to next step
* (Yellow LED Goes Out)
For additional information, see “Transaction Log”.
Note: Seq. # 1 is the programming request to output
the entries. Sequence numbers 2-5 are the
actual entries.
*Transaction Types
003 = Log transaction started
005 = 5 second unlock time**

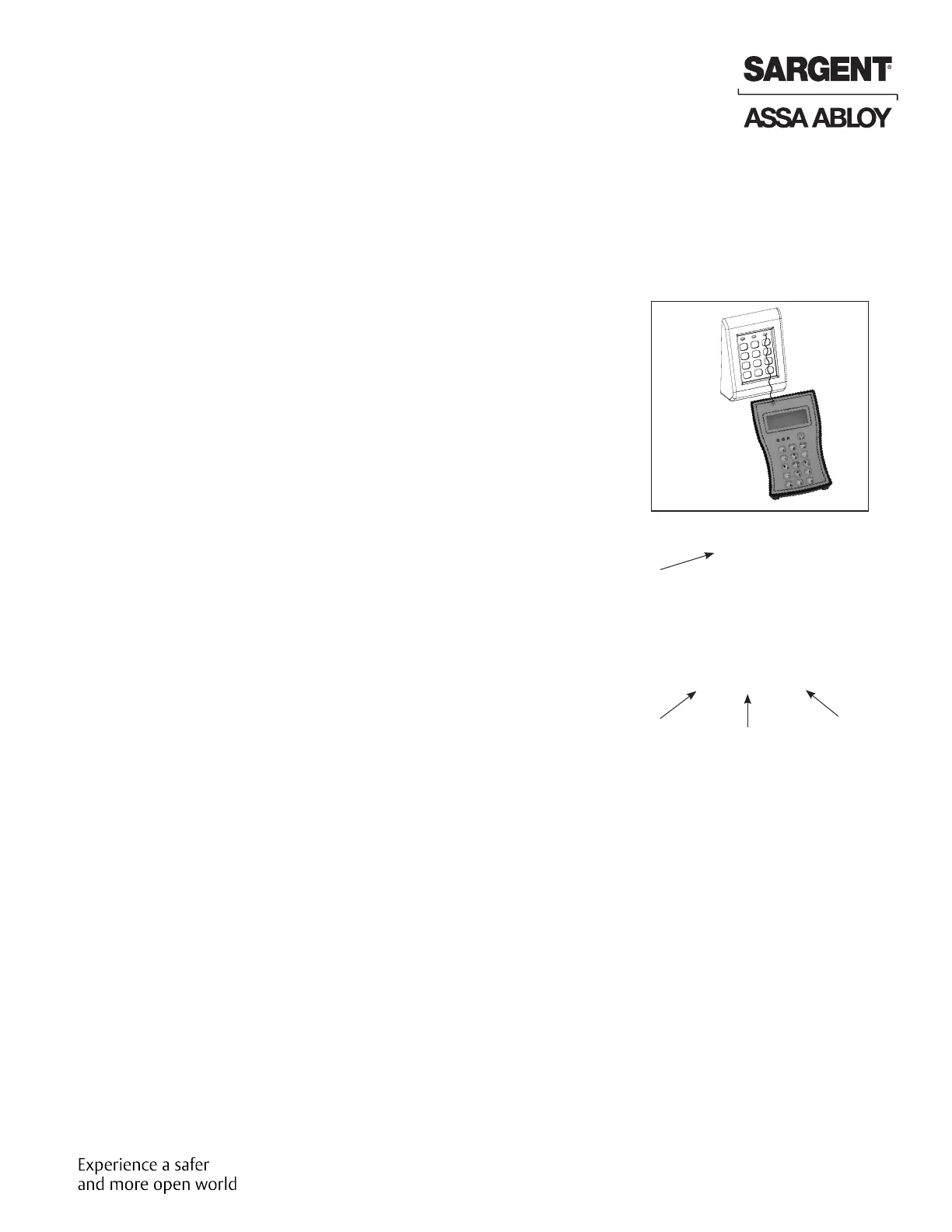

Hold Data Transfer Device (DTD) up to the
(top right side) infrared LED as shown. DTD
can be used to download information from
the keypad.
DataTransfer Device
(DTD)
Transaction Log
To output the last 15 entries:
• enter 99 # Supervisory or Master Code * 70 # 0 # 0 # **.
Door Number
• 4 Digits
• Up to 9999 different doors, assigned by user
Transaction Number
• Single digit - 1-5
• Latest transaction - 1
• Oldest transaction - 5
User Number
• Three digits - 001 through 099
• User numbers assigned at time of programming
Transaction Types
• 003 = Log transaction started
• 005 = Access granted with 5 second unlock time*
*Note: The Unlock Time is Adjustable for Momentary Operation.
A (5)-second unlock time is recommended to extend battery life.
Once the unlock time is entered, it is the same for ALL users except 02,
98 and 99 which are factory set for 10 seconds.
