* Specify finish
3

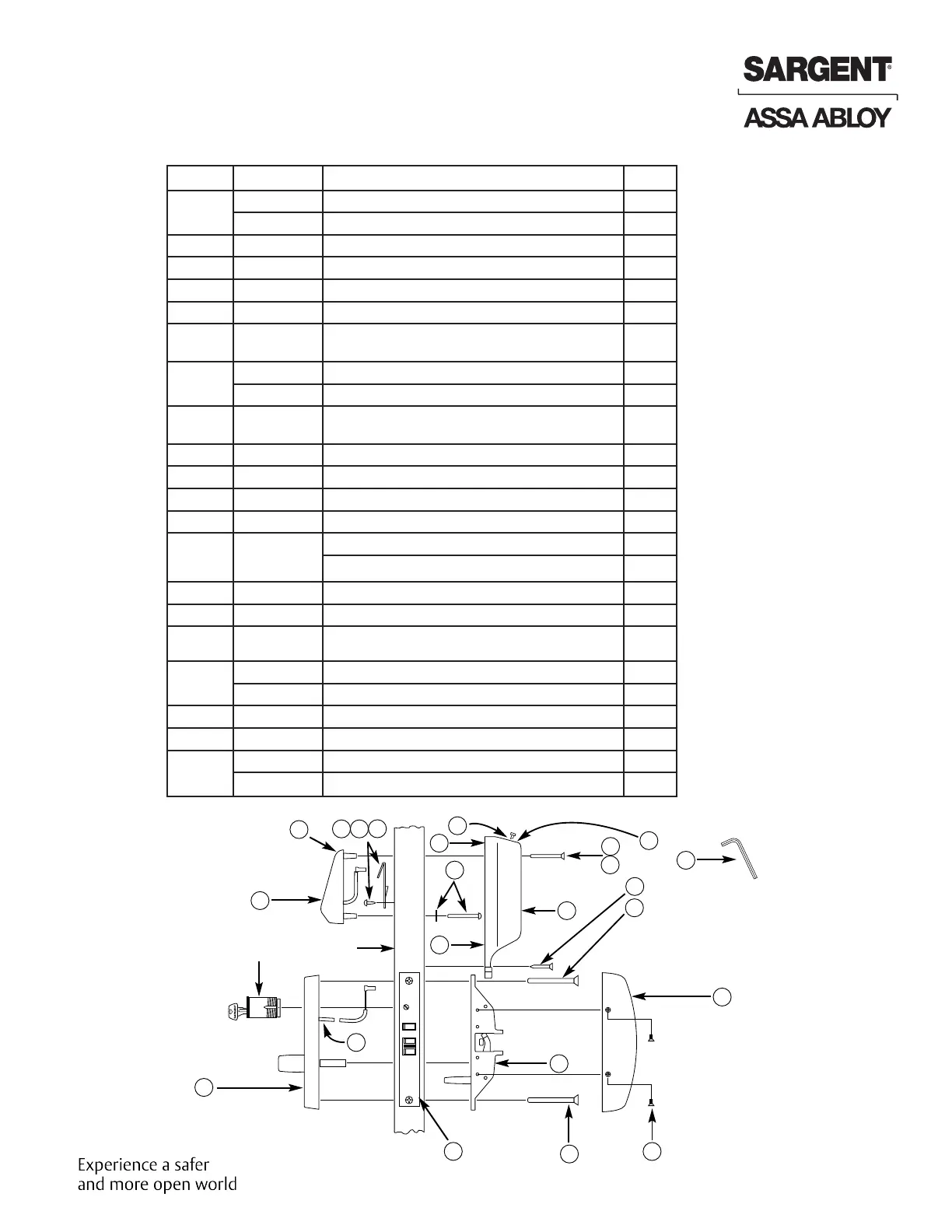

ITEM # PART # DESCRIPTION QTY
1 52-2340 *Outside Escutcheon Assembly (with keypad assy) 1
52-0004 *Outside Escutcheon only 1
1a 52-2299 Keypad (with ribbon cable) less escutcheon 1
1b 52-2303 Screw Pack (Includes 1c, 1d, 2d, 2e) 1
1c 52-0033 Fire Stop Plate 1
1d 01-1500 Fire Stop Plate screws 2
- 52-0254 Optional Keypad Weatherseal Gasket (exterior use),
not shown
1
2 52-2302 *Inside Escutcheon Assembly (with controller assy) 1
52-0087 *Inside Escutcheon only 1
2a 52-6085 Replacement Inside Controller Assembly
(with battery housing)
1
2b 52-0069 Housing Cover 1
2c 01-1212 Security Screw 1
2d 01-0297 Security Tool 1/8” (not provided) 1
2e 01-1119 Top Escutcheon thru-bolt 1
3 Consult
Factory
*ET Assembly (with cylinder) 1
*ET Assembly (without cylinder) 1
3a 68-7546 Motor Actuator Assembly 1
3b 52-5654 Ecoflex ET Harness 1
- 52-0263 Optional ET Trim Weatherseal Gasket for exterior use,
(not shown)
1
4 68-2172 Center Case Assembly - LHRB (standard and 12-) 1
68-2173 Center Case Assembly - RHRB (standard and 12-) 1
4a 68-0407 *Chassis Cover 1
4b 97-0052 *Chassis Cover screws 4
5 99-2401 Mortise Lockbody - LHRB 1
99-2402 Mortise Lockbody - RHRB 1
3
1a
8877
ONLY
(#34)
2c
Door
3a
2a
1b
2b
Outside of door Inside of door
5
2
4
3b
1b
2e
2b
1b
3b
4b
2d
4a
1c
1b
1d
1
