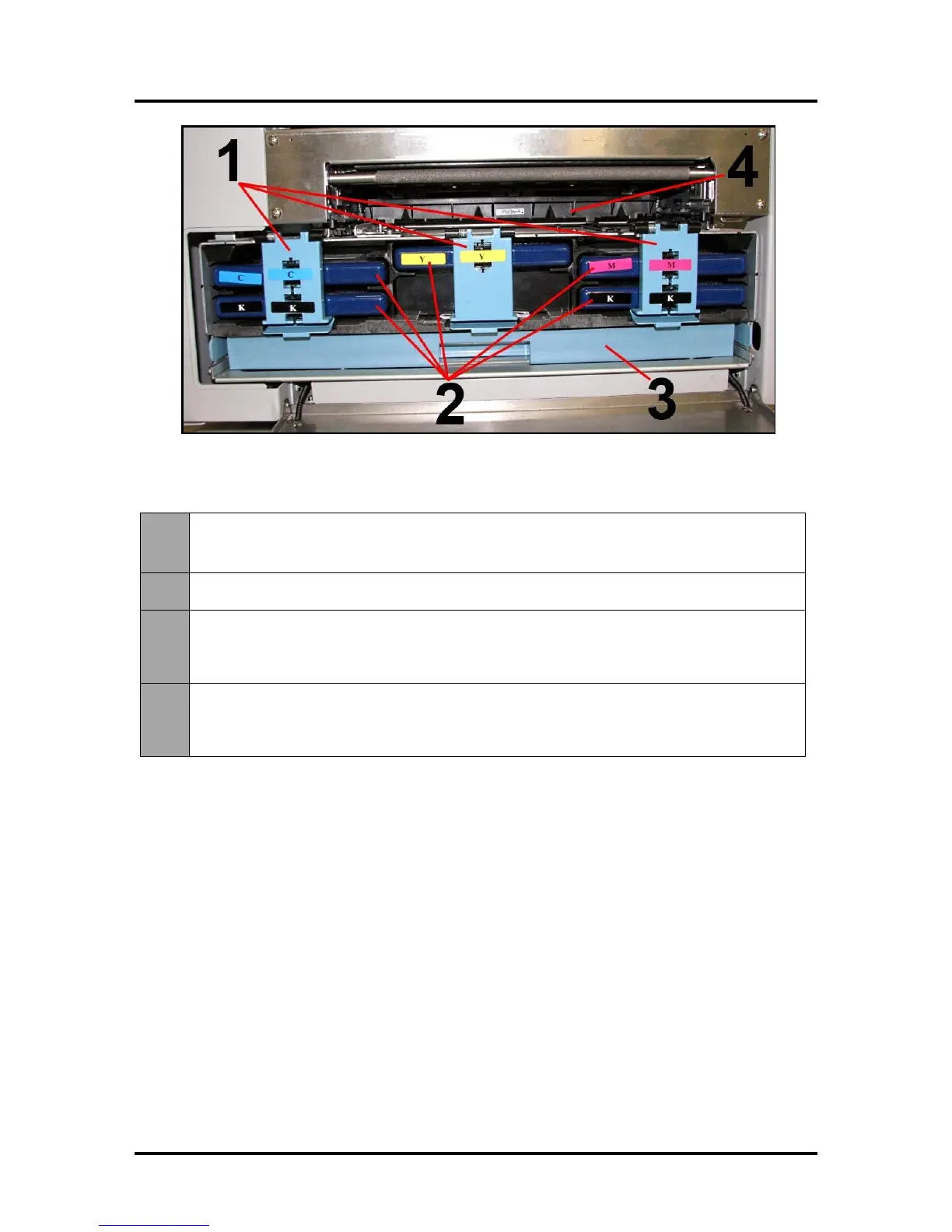

Ink Tank Door View
Ink Tank Securing Latches – Used to hold the Ink Tanks in the slots.
NOTE: Please be sure that both sides at the bottom part of the latch are engaged.
Ink Tanks – Printer has 5 Ink Tanks: Cyan, Yellow, Magenta, Black, Black
Ink Waste Tray – Catches any waste ink produced by the system. Tray is filled with
absorbent material. Tabs located at the left and right sides of the tray secure the tray to
the print engine frame. Please be sure the tabs click in to secure the tray's position.
Service Station – Cleans the Printhead Cartridge of excess ink and debris, keeps the
Printhead hydrated and protected when not in use, captures ink used to keep nozzles
clear, and acts as a base to support media during printing.
