Asus E3746 - Chapter 2: Hardware Information

2-2 Chapter 2: Hardware information
2. Memory LED

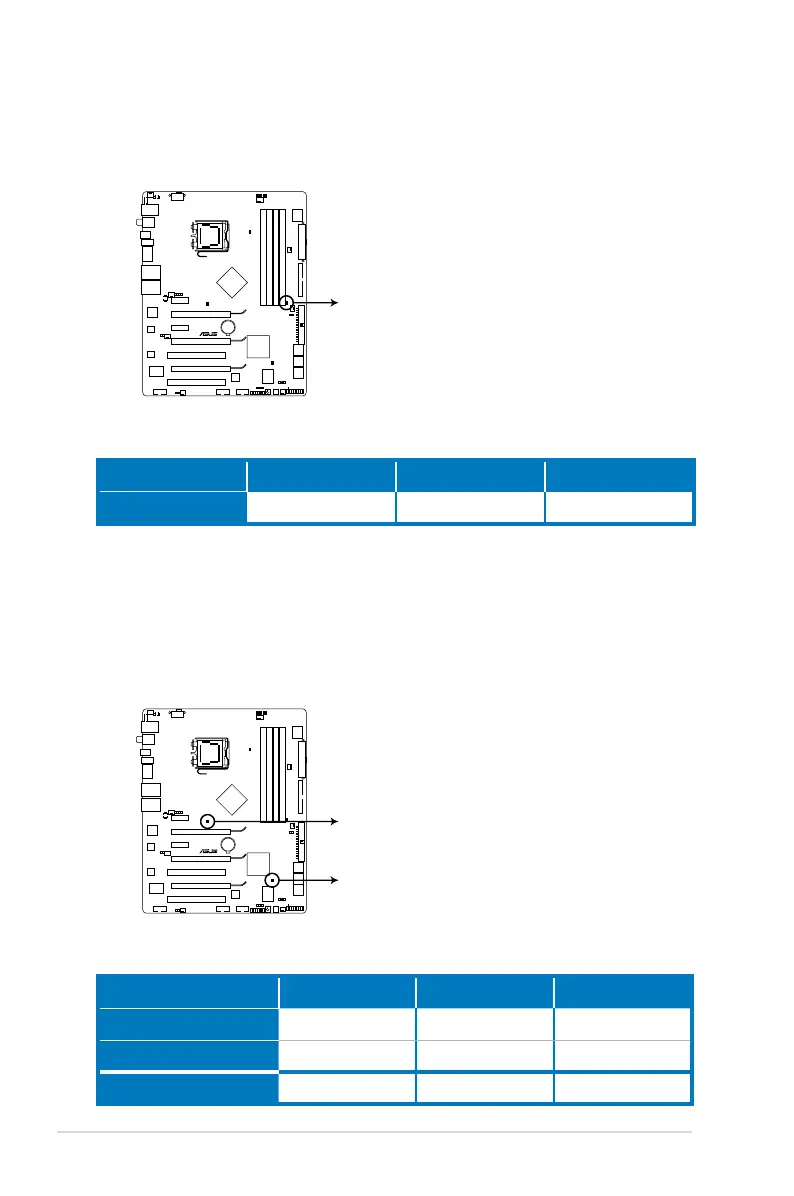

Refer to the illustration below for the location of the memory LED and the

3. Northbridge/Southbridge LEDs
The northbridge LED displays either the NB Core Voltage or the CPU VTT

shows the SB Core Voltage. Refer to the illustration below for the location of

Normal (green) High (yellow) Crazy (red)
Memory Voltage
1.50~1.90 1.92~2.30 2.32~
Normal (green) High (yellow) Crazy (red)
NB Core Voltage
1.30~1.69 1.71~1.93 1.95~
CPU VTT Voltage
1.20~1.40 1.42~1.60 1.62~
SB Core Voltage
1.50~1.60 1.65~1.75 1.80~
STRIKER II EXTREME
DDR_CRAZY
DDR_HIGH
DDR_NORMAL
STRIKER II EXTREME/
STRIKER II NSE DDR LED
STRIKER II EXTREME
SB_CRAZY
SB_HIGH
SB_NORMAL
NB_CRAZY
NB_HIGH
NB_NORMAL
STRIKER II EXTREME/
STRIKER II NSE North/South Bridge LED
