ROG Striker II Extreme / Striker II NSE 2-21

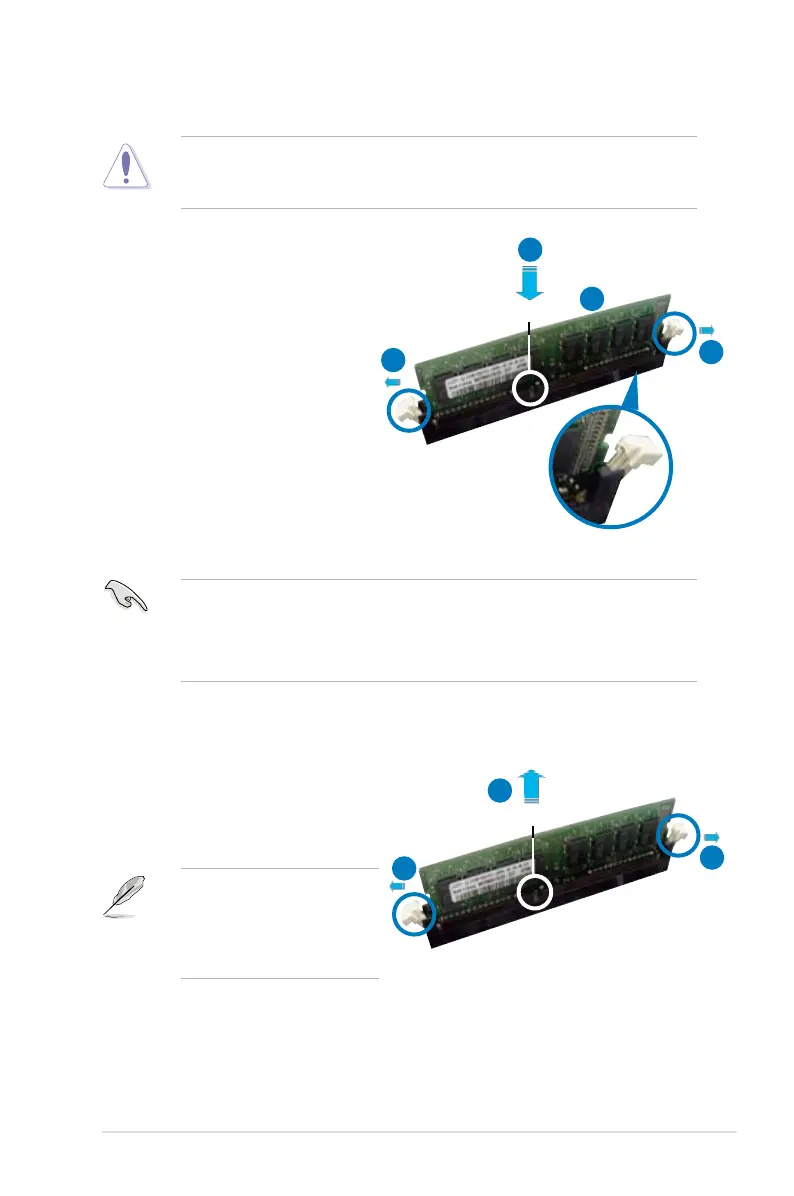

2.4.3 Installing a DIMM
Unplug the power supply before adding or removing DIMMs or other
system components. Failure to do so can cause severe damage to both the
motherboard and the components.
To install a DIMM:
1. Unlock a DIMM socket by
pressing the retaining clips
outward.
2. Align a DIMM on the socket
such that the notch on the
DIMM matches the break on the
socket.
3. Firmly insert the DIMM into the
socket until the retaining clips
snap back in place and the
DIMM is properly seated.
2.4.4 Removing a DIMM
To remove a DIMM:
1. Simultaneously press the retaining
clips outward to unlock the DIMM.
2. Remove the DIMM from the socket.
Support the DIMM lightly with

the retaining clips. The DIMM
might get damaged when it

 
not force a DIMM into a socket to avoid damaging the DIMM.
• The DDR3 DIMM sockets do not support DDR or DDR2 DIMMs. Do not
install DDR or DDR2 DIMMs to the DDR3 DIMM sockets.
Unlocked retaining clip
DDR3 DIMM notch
1
2
3
1
2
DDR3 DIMM notch
1
1
