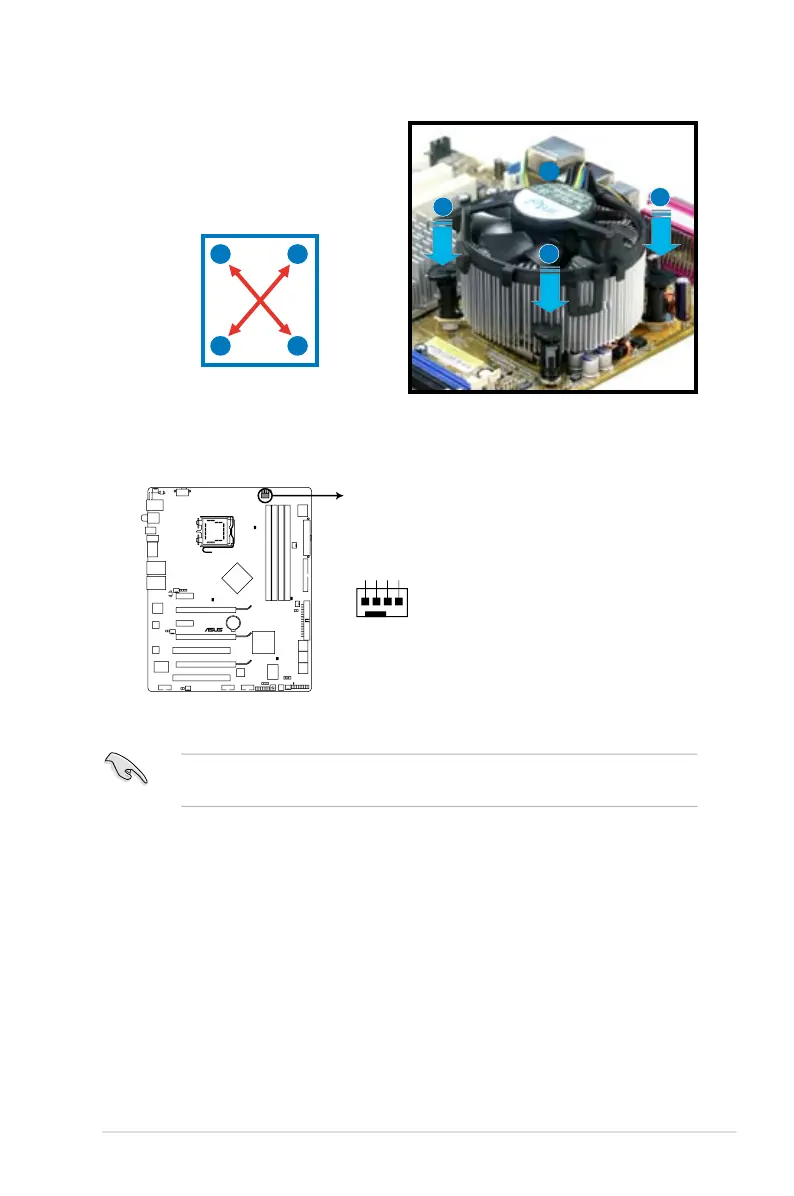

ROG Striker II Extreme / Striker II NSE 2-13
3. Connect the CPU fan cable to the connector on the motherboard labeled
CPU_FAN.
2. Push down two fasteners at a time
in a diagonal sequence to secure
the heatsink and fan assembly in
place.
B
A
A
A
B
B
DO NOT forget to connect the CPU fan connector! Hardware monitoring errors
can occur if you fail to plug this connector.
A
B
STRIKER II EXTREME
CPU_FAN
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
STRIKER II EXTREME/
STRIKER II NSE CPU fan connecto
