Chapter 2: Hardware Setup
2-26

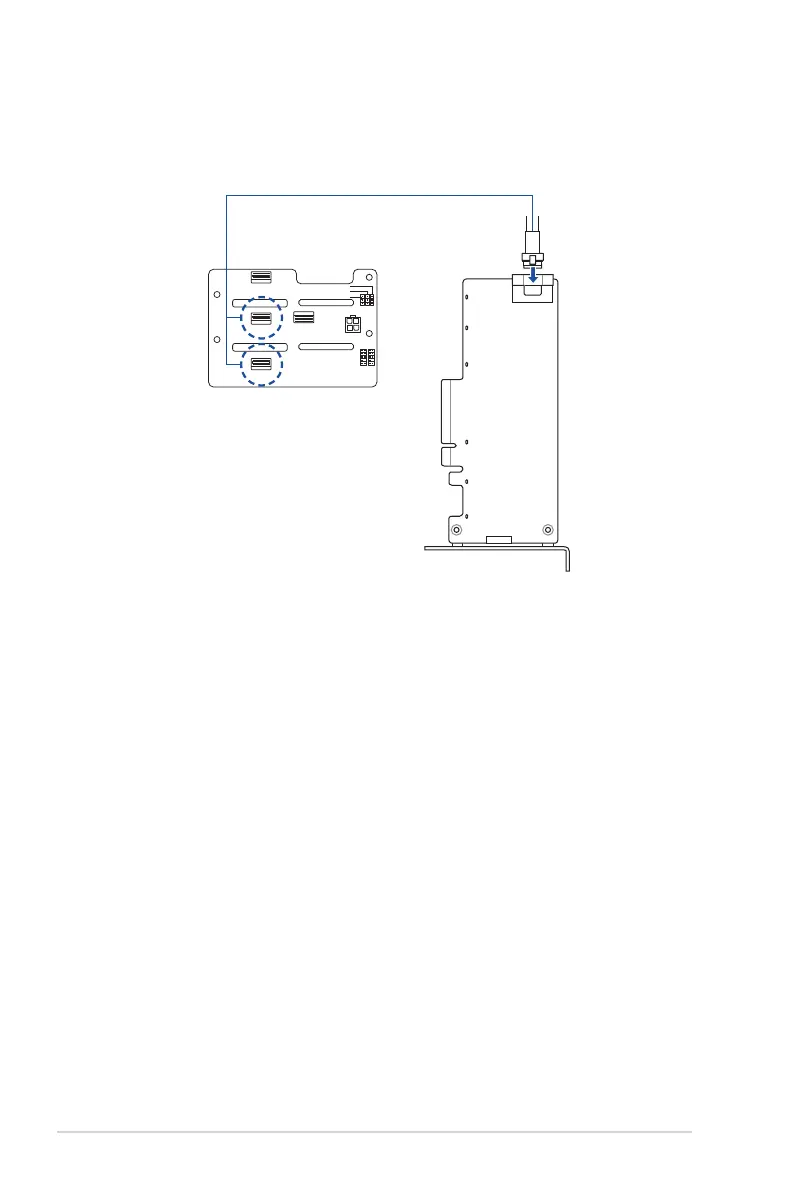

To connect a 9540 RAID card in NVME configuration:
a. Connect the SLIMSAS connector on the RAID card to
MCIO3
and
MCIO4
on the
left backplane using the bundled cables.
Left backplane
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
