2-25
ASUS ESC4000A-E12

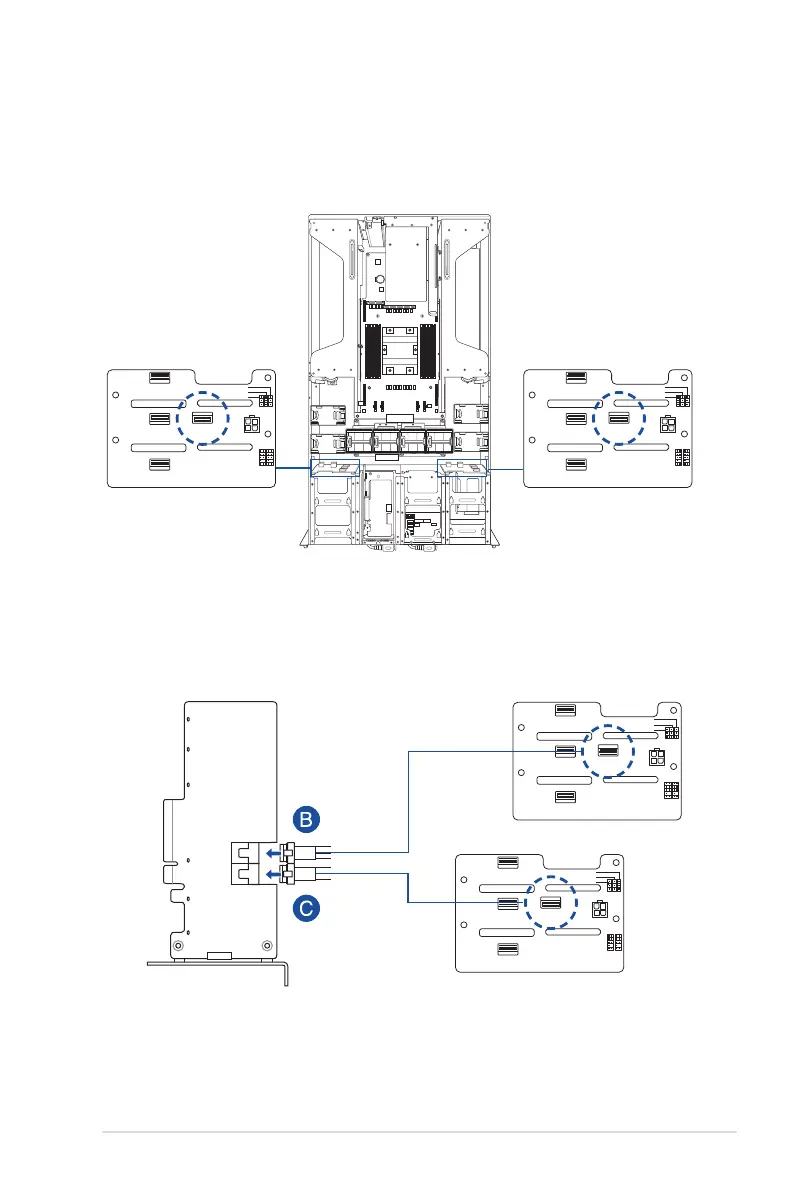

9. Refer to the below instructions to connect the PIKE II or RAID card:
To connect a PIKE II 3008 / PIKE II 3108 card:
a. Disconnect the default SLIMSAS cables connected to
SLIMSAS1
on the left and
right backplanes.
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
Left backplane Right backplane
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
b. Connect the upper MiniSAS (ISAS1) connector (B) on the PIKE II card to
SLIMSAS1
on the right backplane using the bundled cables.
c. Connect the lower MiniSAS (ESAS1) connector (C) on the PIKE II card to
SLIMSAS1
on the left backplane using the bundled cables.
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
Left backplane
Right backplane
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
