Chapter 2: Hardware Setup
2-28

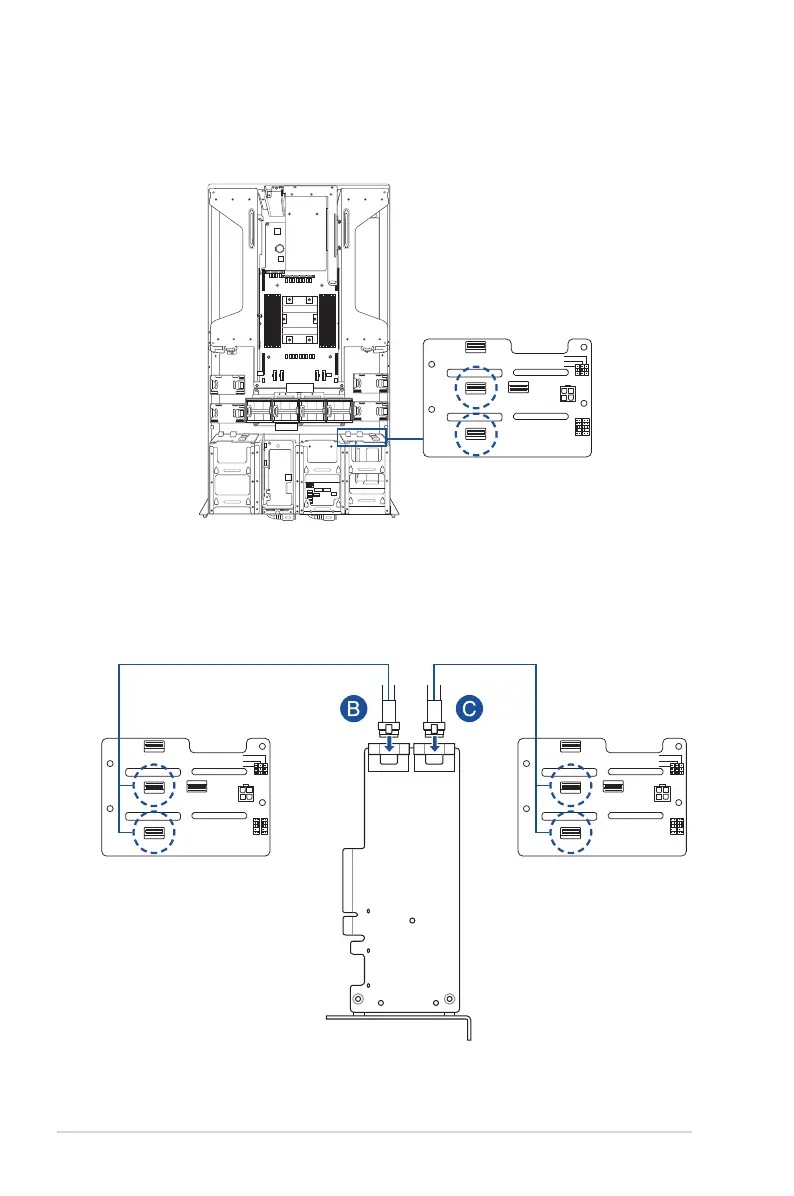

To connect a 9560 RAID card in NVME configuration:
a. Disconnect the default MCIO cables connected to
MCIO3
and
MCIO4
on the right
backplane.
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
Right backplane
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
Left backplane
Right backplane
VPP_I2C1
BP_TP_BP1
BPPWR4
SGPIO_SW1
BP_NUM_SW1
TRI_DIS1
SLIMSAS1
MCIO3
MCIO1
MCIO4
b. Connect the left SLIMSAS connector (B) on the RAID card to
MCIO3
and
MCIO4
on the left backplane using the bundled cables.
c. Connect the right SLIMSAS connector (C) on the RAID card to
MCIO3
and
MCIO4
on the right backplane using the bundled cables.
