3-18
Chapter 3: Motherboard Information

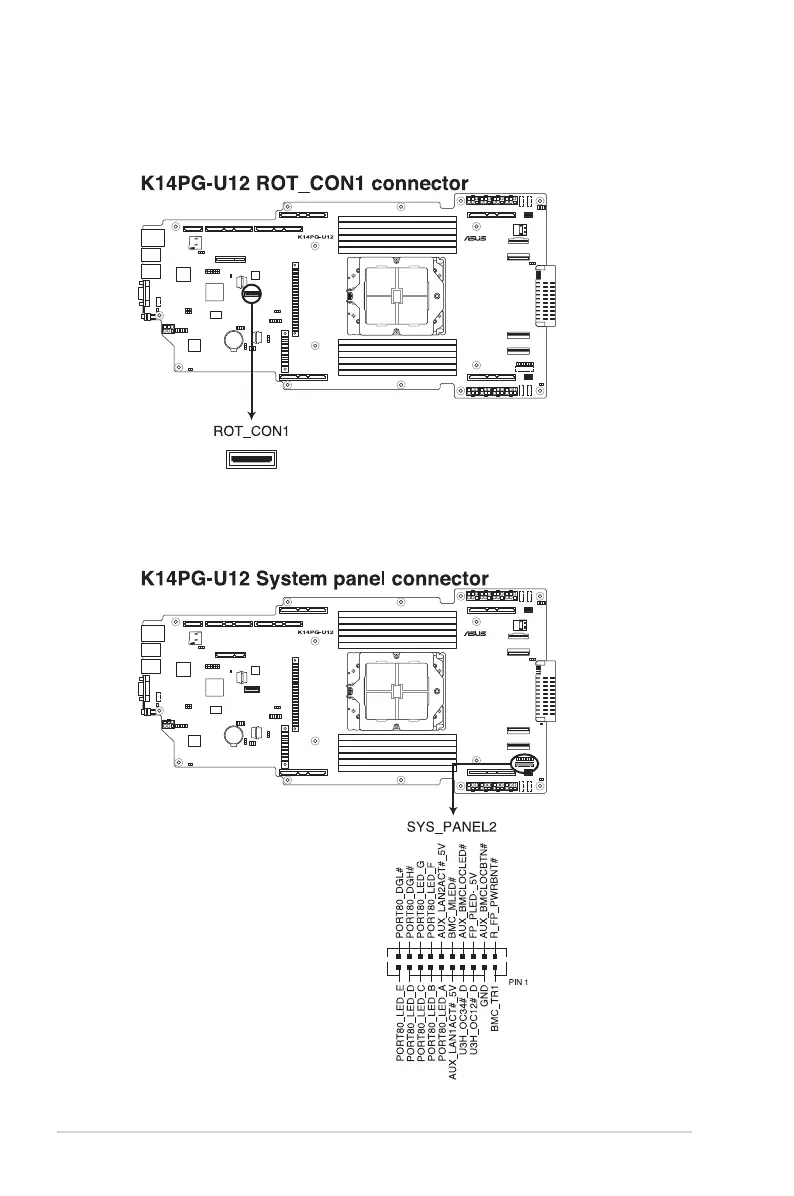

11. Platform Firmware Resilience (PFR) Module connector (ROT_CON)
This connector allows you to connect a PFR module to enable platform firmware
resilience functions.
12. System Panel connector (20-pin SYS_PANEL2)
This connector supports several chassis-mounted functions.
