Chapter 1: Product Introduction
1-10
1
2
3 4
1
2
3 4
The barebone server does not include a oppy disk drive. Connect a USB oppy disk drive
to any of the USB ports on the front or rear panel if you need to use a oppy disk.
WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY

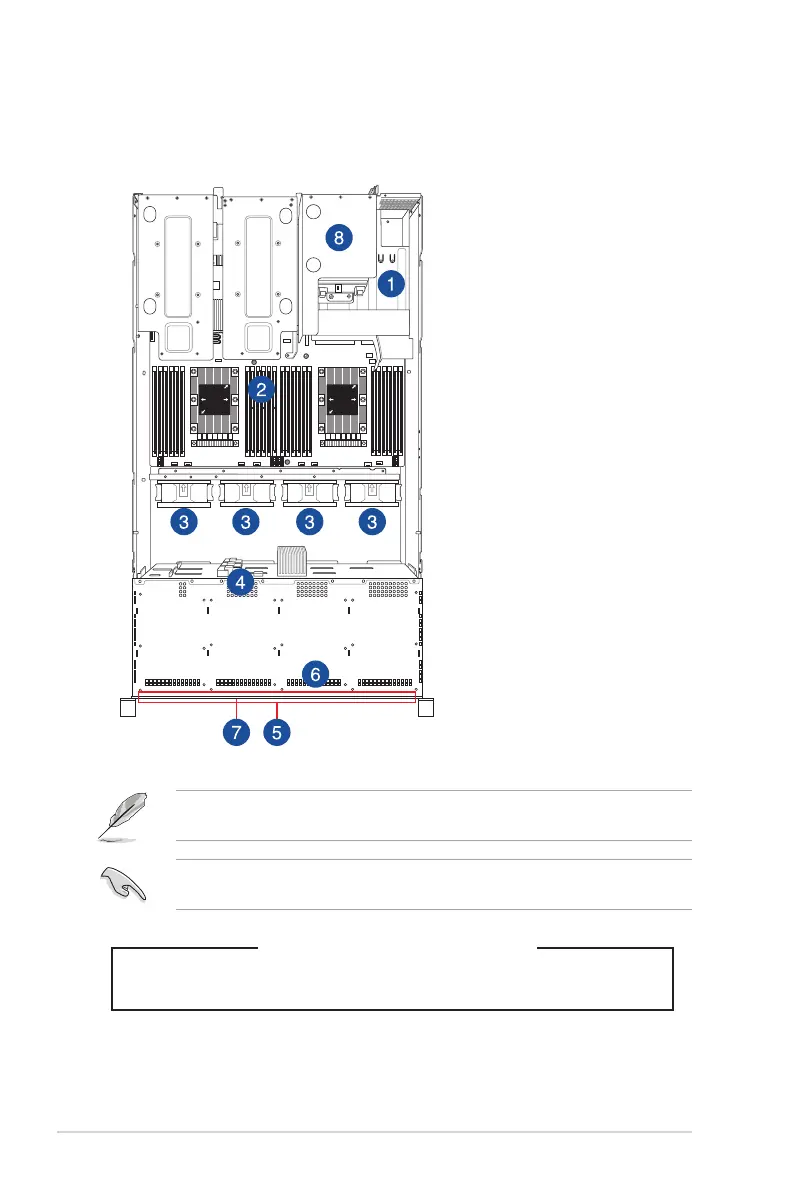

1. Redundant Power supply
2. ASUS Z11PP-D24 Server
Board
3. System fans
4. SATA/SAS back panel
5. 8 x 2.5”/3.5” storage device
trays
6. Front panel (hidden)
7. Asset tag (hidden)
8. 2 x 2.5” storage device trays
A protection lm is pre-attached to the front cover before shipping. Please remove the
protection lm before turning on the system for proper heat dissipation.
RS720-E9-RS8 (with rear bay model)
