ASUS RS720-E9-RS8/RS8-G

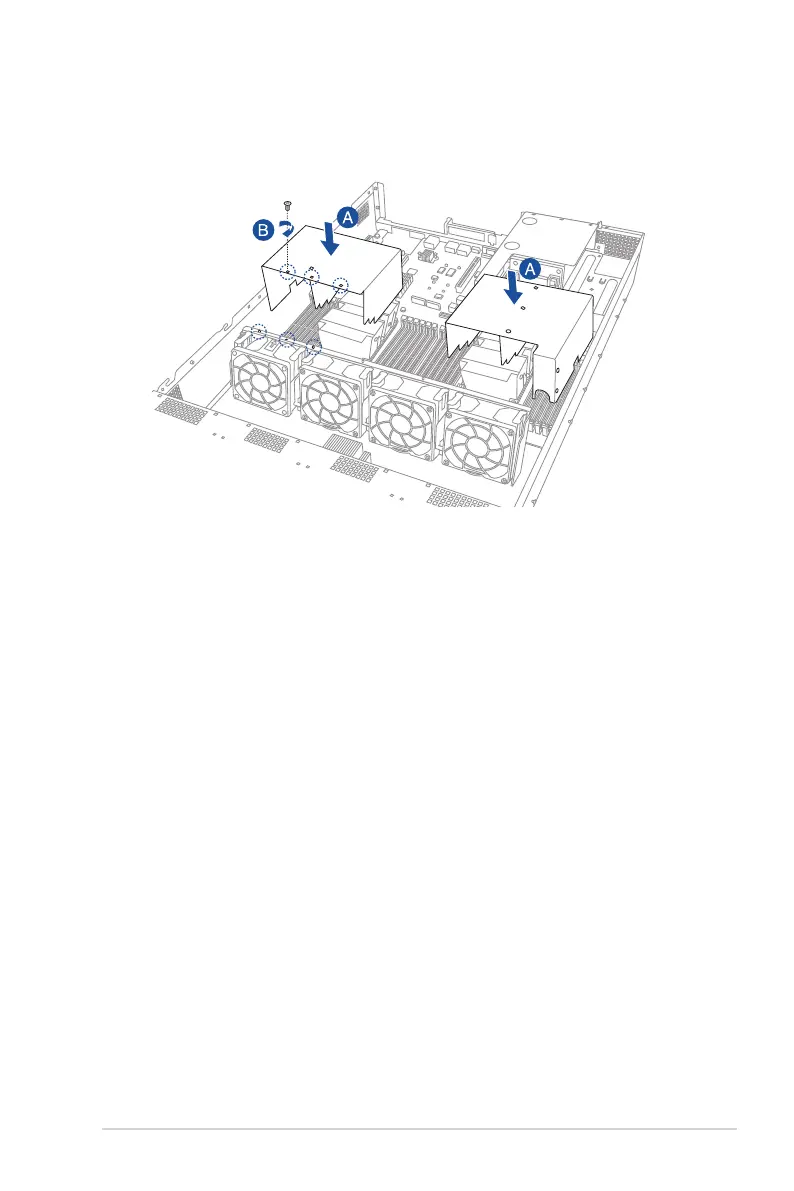

6. Reinstall the air ducts (A), and then secure the air duct with the air duct screw removed

in step 2 (B).
