ASUS RS720-E9-RS8/RS8-G

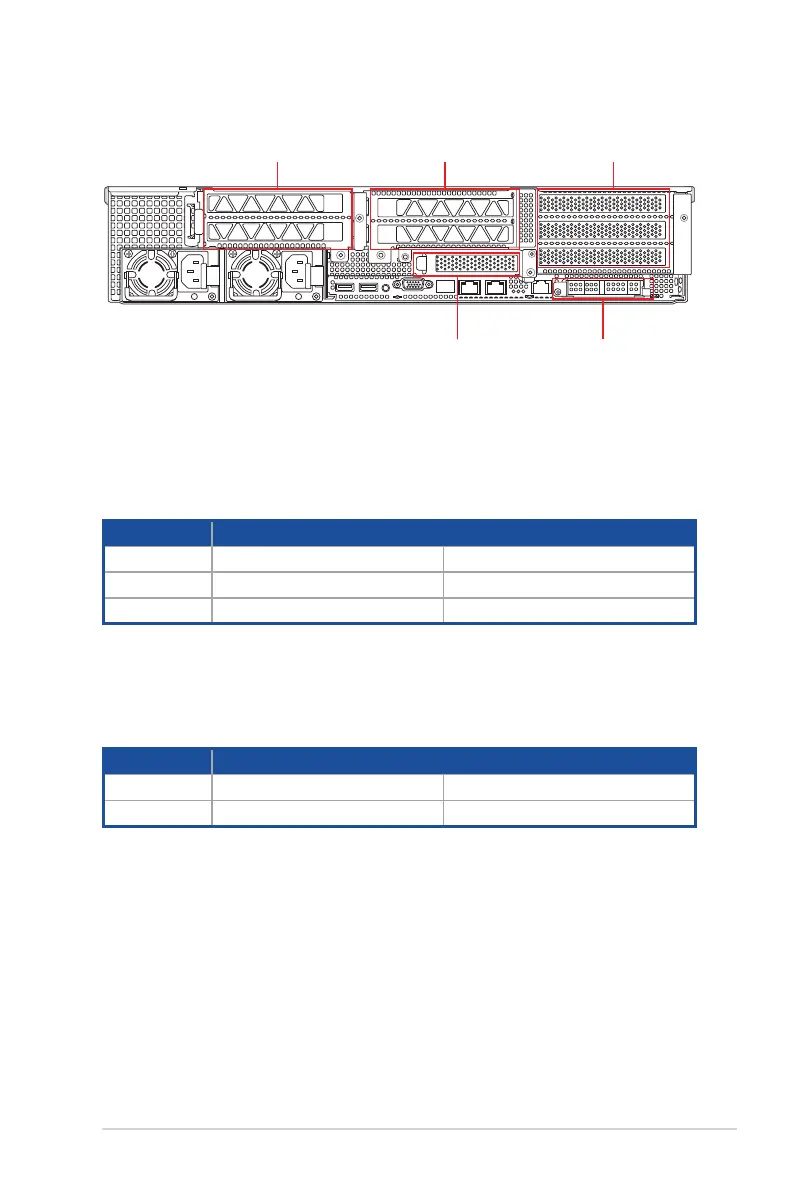

Riser card bracket 1
Riser card bracket 1 supports PCIe Gen3 slots 1-3 top to bottom. Slot 2 can be auto-switch to
x16modewhenx16cardispopulatedwhereasslot1willbedisabled.
Riser card bracket 2
Riser card bracket 2 supports PCIe Gen3 slots 4-5 top to bottom. Slot 4 can be auto-switch to
x16modewhenx16cardispopulatedwhereasslot5willbedisabled.
PCIe slot Operation mode
Slot 4 x8 x16
Slot 5 x8 N/A
PCIe slot Operation mode
Slot 1 x8 N/A
Slot 2 x8 x16(NVMe4portrisercardbyoption)
Slot 3 x8(ASUSPIKEIIcardbyoption) x8(ASUSPIKEIIcardbyoption)
Riser card 3 Riser card 1Riser card 2
Riser card 4 OCP Mezzanine
RS720-E9-RS8-G
