Chapter 2: Hardware Information
2-20

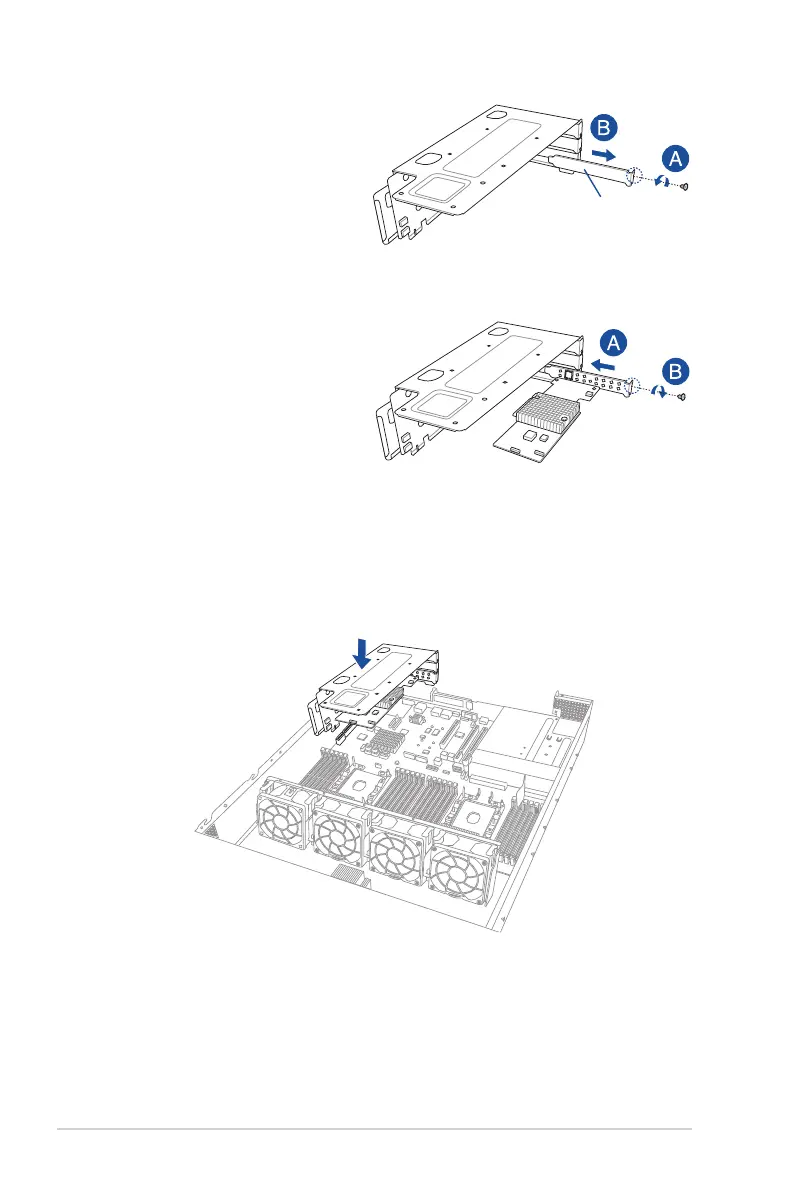

3. Remove the screw from the
metal cover (A), then remove the
metal cover (B) from the riser
card bracket 1.
4. InstallthePCIEexpansioncard
into the riser card bracket 1 (A),
thensecuretheexpansioncard
with the screw (B).
5. Installtherisercardbracket1andthePCIEexpansioncardassemblyintothePCIE1
slot on the motherboard. Ensure that the golden connectors of the riser card bracket 1
isrmlyseatedinplace.
6. Secure the riser card bracket 1 to the chassis with the screw removed in step 1.
Metal cover
