Chapter 1: Product Introduction
1-8

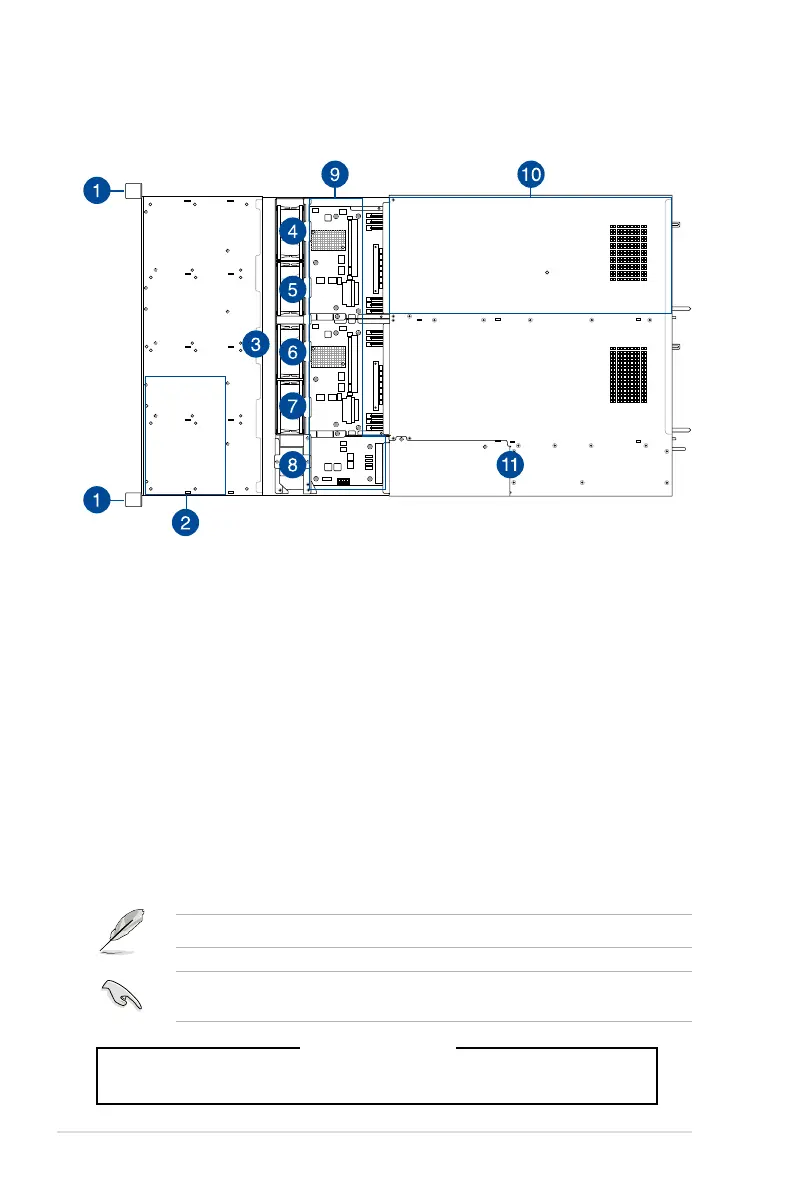

1.6 Internal features
The barebone server includes the basic components as shown.
*WARNING
HAZARDOUS MOVING PARTS
KEEP FINGERS AND OTHER BODY PARTS AWAY
Turn off the system power and detach the power supply before removing or replacing any
system component.
1. Front LED Boards
2. Hot-swap storage device trays
3. Backplane
4. System fan (SYS_FAN1)
5. System fan (SYS_FAN2)
6. System fan (SYS_FAN3)
7. System fan (SYS_FAN4)
8. BP_FAN1 (top) and BP_FAN2 (bottom)
9. SATA/NVMe Mid-plane (for RS720Q-E9-RS8) or
SATA/SAS/NVMe Mid-plane (for RS720Q-E9-RS8-S)
10. ASUS Z11PH-D12 Server Board
11. Power supply and power fan
Ensure that the air duct is positioned on the gaps between the memory slots.
