RS720Q-E9-RS8 Series
• The heartbeat LED functions only when you enable the ASUS ASMB9.
• Every time after the AC power is replugged, you have to wait for about 30 seconds for
the system to power up.
4.4 Internal LEDs

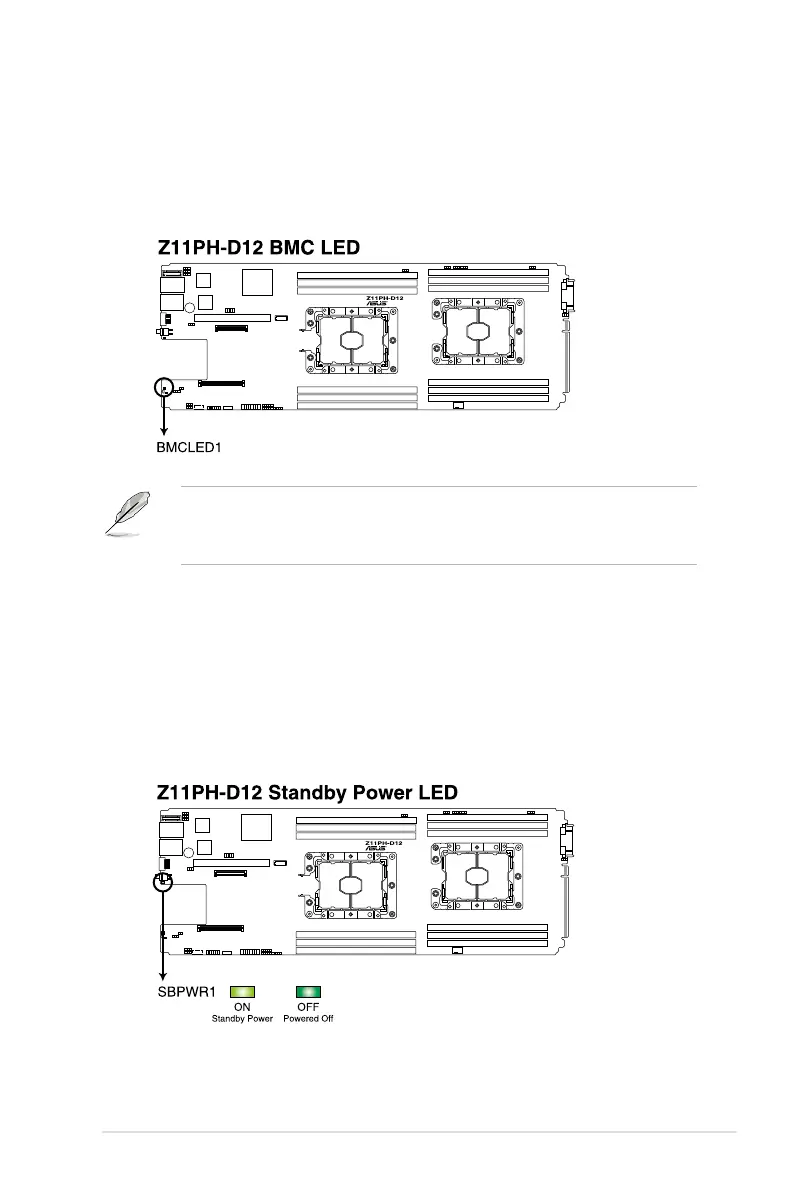

1. BMC LED (BMCLED1)
The green heartbeat LED blinks per second to indicate that the ASMB9 is working
normally.
2. Standby Power LED (SBPWR1)
The motherboard comes with a standby power LED. The green LED lights up to
indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder
that you should shut down the system and unplug the power cable before removing or
plugging in any motherboard component. The illustration below shows the location of
the onboard LED.
