Chapter 3: Installation Options
3-4
1 2
1 2
1 2
1 2
7. Lift the server chassis and insert into the rack rail.
• Ensurethattherackrailcabinetandtherackpostsarestableandstandingrmlyona
level surface.
• Westronglyrecommendthatatleasttwoable-bodiedpersonsperformthesteps
described in this guide.
• Werecommendtheuseanappropriateliftingtoolordevice,ifnecessary.
Ensure to include the side knots on the two sides of the server in the rack rail holders.
The illustrations shown above are for reference only.

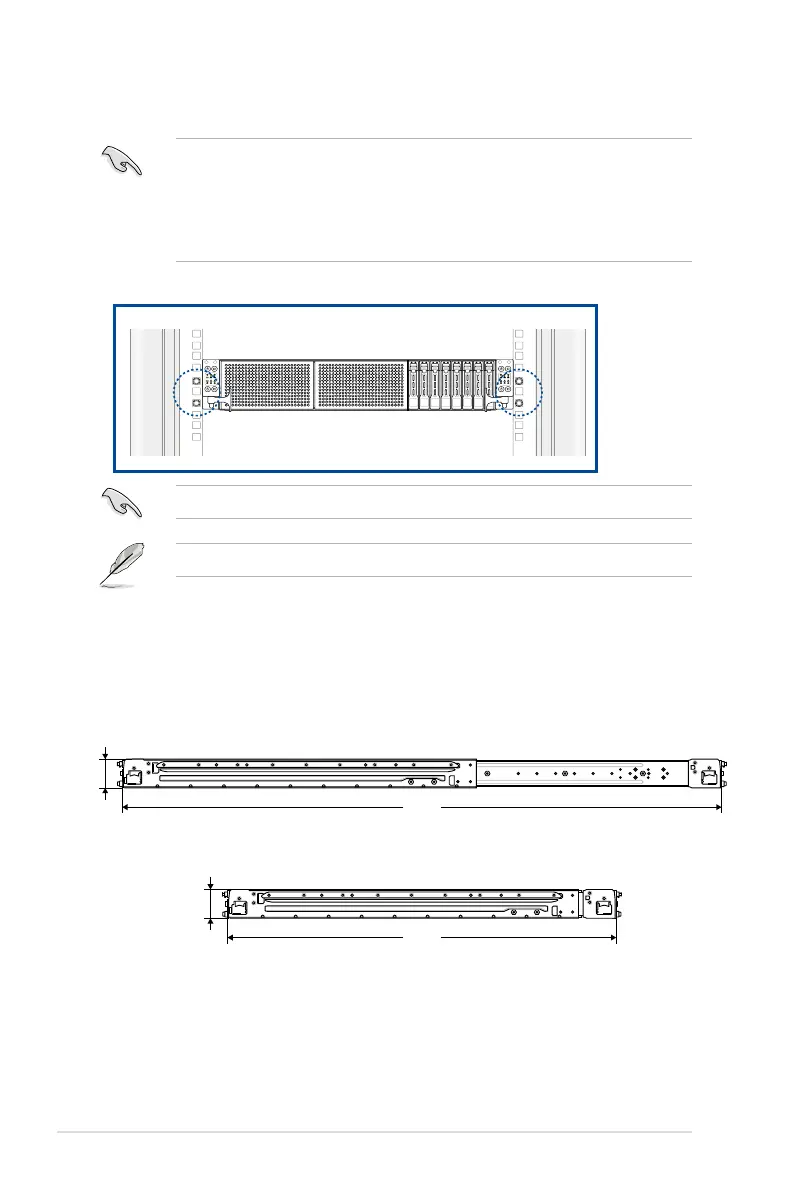

3.2 Rail kit dimensions
589mm
43.6mm
900mm
43.6mm
