2.6.3 Installing Mezzanine cards

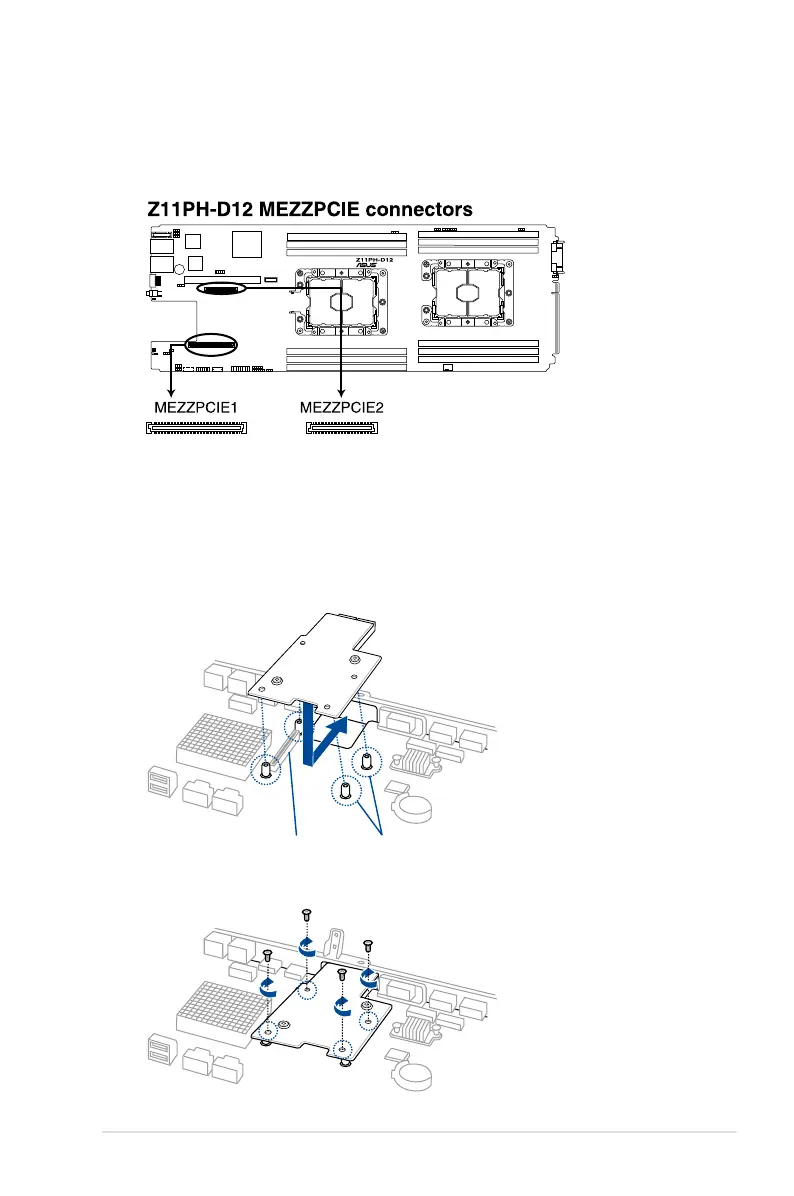

To install a Mezzanine card:
2. Prepare the Mezzanine card.
3. Insert the port of the Mezzanine card into the mounting hole on the chassis then
insert the golden connector of the Mezzanine card into the OCP connector on the
motherboard.
Ensure that the stand screws on the motherboard is aligned and matched to the screw
holes of the Mezzanine card.
1. Locate a Mezzanine card connector on your motherboard.
4. Secure the Mezzanine card with four bundled screws.
stand screwsOCP connector
