2-25
RS720Q-E9-RS8 Series
2.8.2
Power supply module

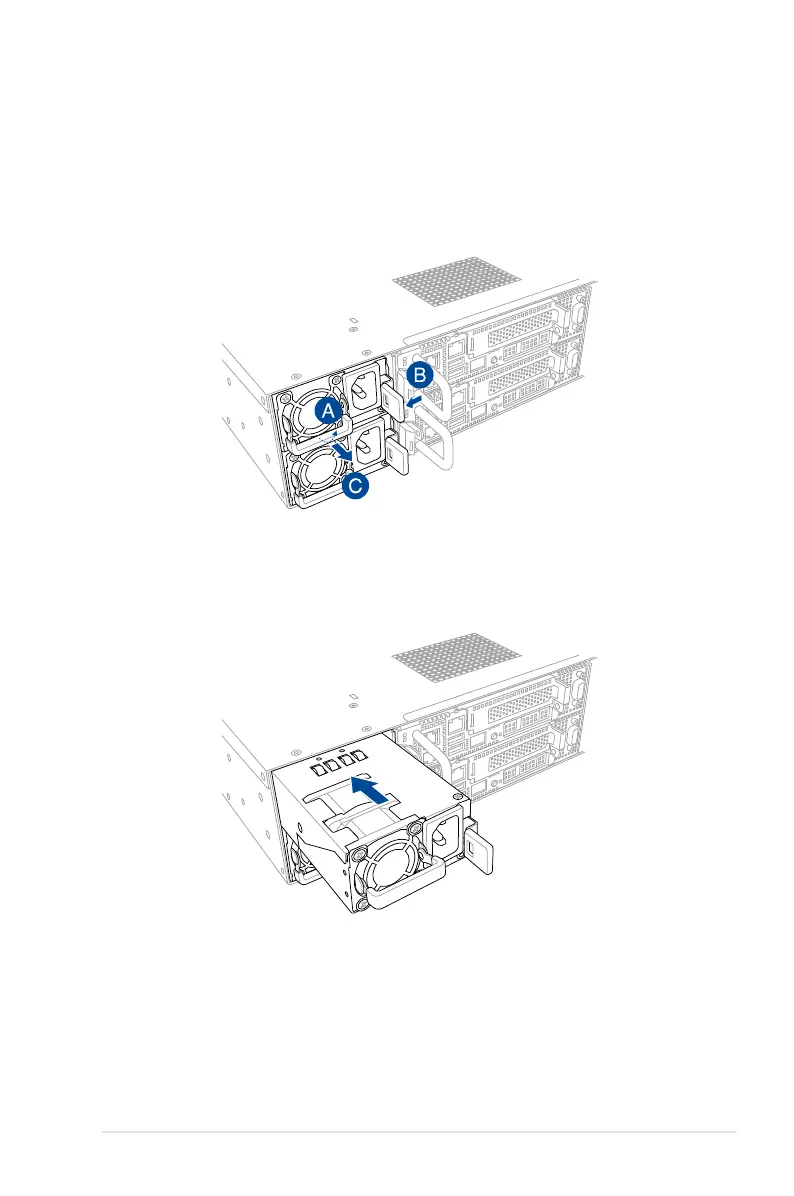

To replace a power supply unit (PSU):
1.
Lift up the PSU lever.
2.
Hold the PSU lever, press the PSU latch (A) then carefully pull the PSU out of the
system chassis (B).
3.
Prepare the replacement PSU.
4.
Align and insert the replacement PSU into the empty PSU bay until it clicks in place.
48
50
Table of Contents
Table of Contents
3
Default Chapter
7
Notices
7
Reach
7
Safety Information
8
Australia Statement Notice
9
About this Guide
10
Chapter 1: Product Introduction
13
System Package Contents
14
Serial Number Label
15
System Specifications
16
Front Panel Features
18
Rear Panel Features
19
Internal Features
20
LED Information
21
Front Panel Leds
21
LAN (RJ-45) Leds
22
HDD Status Leds
22
Chapter 2: Hardware Information
25
Removing the Server Node
26
Air Duct
27
Central Processing Unit (CPU)
28
Installing the CPU and Heatsink
28
System Memory
31
Overview
31
Memory Configurations
31
Storage Devices
33
Expansion Slots
35
The PCI Express Riser Card
35
Installing an ASUS HFI-OMNI 100G LAN Card
38
Installing Mezzanine Cards
41
Configuring an Expansion Card
42
Backplane and MID Plane Cabling
43
Removable/Optional Components
47
System Fan
47
Power Supply Module
49
Chapter 3: Installation Options
51
Tool-Less Friction Rail Kit
52
Rail Kit Dimensions
54
Chapter 4 : Motherboard Information
56
Motherboard and MID Plane Layout
56
4.1.1 Layout
58
Default Chapter
58
Layout Contents
58
Jumpers
59
Clear RTC RAM (CLRTC1)
59
LAN Controller Setting (3-Pin LAN_SW1, LAN_SW2)
60
VGA Controller Setting (3-Pin VGA_SW1)
60
DDR4 Thermal Event Setting (3-Pin DIMMTRIP1-2)
61
ME Firmware Force Recovery Setting (3-Pin ME_RCVR1)
61
BMC Setting (3-Pin BMC_EN1)
62
Pmbus 1.2 PSU Select Jumper (3-Pin SMART_PSU1)
62
Chassis Intrusion (2-Pin INTRUSION1)
63
DMLAN Setting (3-Pin DM_IP_SEL1)
63
PCH_MFG Setting (3-Pin PCH_MFG1)
64
Internal Connectors
65
Internal Connectors Page
65
Trusted Platform Module Connector (20-1 Pin TPM1)
65
Serial Port Connector (10-1 Pin COM1)
65
OMNIP Connector (24-Pin OMNIP1)
66
VROC_KEY Connector (4-Pin VROC_KEY1)
66
Mezzanine PCI Card Connectors (MEZZPCIE1; MEZZPCIE2)
67
VGA Connector (16-1 Pin VGA_HDR1)
67
Power Connector
68
Internal Leds
69
Internal Leds Page
69
Bmc Led (Bmcled1)
69
Standby Power LED (SBPWR1)
69
Location LED (LOCLED1)
70
Message LED (MESLED1)
70
MID Plane Jumper
71
MID Plane Jumper Page
71
V_SEL1 Jumper
71
Chapter 5: BIOS Setup
73
Managing and Updating Your BIOS
74
ASUS Crashfree BIOS 3 Utility
74
ASUS EZ Flash Utility
75
BUPDATER Utility
76
BIOS Setup Program
78
BIOS Menu Screen
79
Menu Bar
79
Menu Items
80
Submenu Items
80
Navigation Keys
80
General Help
80
Configuration Fields
80
Pop-Up Window
80
Scroll Bar
80
Main Menu
81
System Date [Day XX/XX/XXXX]
81
System Time [XX:XX:XX]
81
Advanced Menu
82
Trusted Computing
83
ACPI Settings
83
Smart Settings
83
Super IO Configuration
84
Serial Port Console Redirection
84
Onboard LAN Configuration
87
Apm
88
PCI Subsystem Settings
89
Network Stack Configuration
93
CSM Configuration
94
Nvme Configuration
95
USB Configuration
95
Vcore Adjust
96
Iscsi Configuration
96
Intel(R) Virtual RAID on CPU
96
Platform Configuration Menu
97
PCH Configuration
97
Miscellaneous Configuration
99
Server ME Configuration
99
Runtime Error Logging
100
Socket Configuration Menu
101
Processor Configuration
101
Common Refcode Configuration
103
UPI Configuration
103
Memory Configuration
104
IIO Configuration
105
Advanced Power Management Configuration
106
Event Logs Menu
108
Change Smbios Event Log Settings
108
View Smbios Event Log
108
Server Mgmt Menu
109
System Event Log
109
BMC Network Configuration
110
View System Event Log
111
Security Menu
112
Boot Menu
115
Save & Exit Menu
116
Tool Menu
116
Chapter 6: RAID Configuration
119
Setting up RAID
120
RAID Definitions
120
Installing Hard Disk Drives
120
RAID Configuration Utilities
120
Intel ® Virtual Raid on CPU in BIOS
121
Creating a RAID Set
122
Deleting a RAID Set
123
Intel ® Rapid Storage Technology Enterprise (Windows)
124
Creating a RAID Set
125
Changing a Volume Type
127
Deleting a Volume
128
Preferences
129
Chapter 7 : Driver Installation
132
Intel Rste RAID Driver Installation
132
Creating a USB Flash Drive with RAID Driver
132
Installing the RAID Controller Driver
132
Management Applications and Utilities Installation
135
Running the Support DVD
135
Intel ® Chipset Device Software Installation
138
Installing the Intel ® I350-AM2/I210 Gigabit Adapters Driver
140
VGA Driver Installation
143
Intel ® Rapid Storage Technology Enterprise 5.0 Installation
145
Appendix
149
Z11PH-D12 Block Diagram
150
ASUS Contact Information
151
