2-23
RS720Q-E9-RS8 Series
2.8 Removable/optional components
You may need to remove previously installed system components when installing or removing
system devices. Or you may need to install the optional components into the system. This
section tells how to remove/install the following components:
1. System fans
2. Power supply module
Ensure that the system is turned off before removing any components.
To replace a system fan:

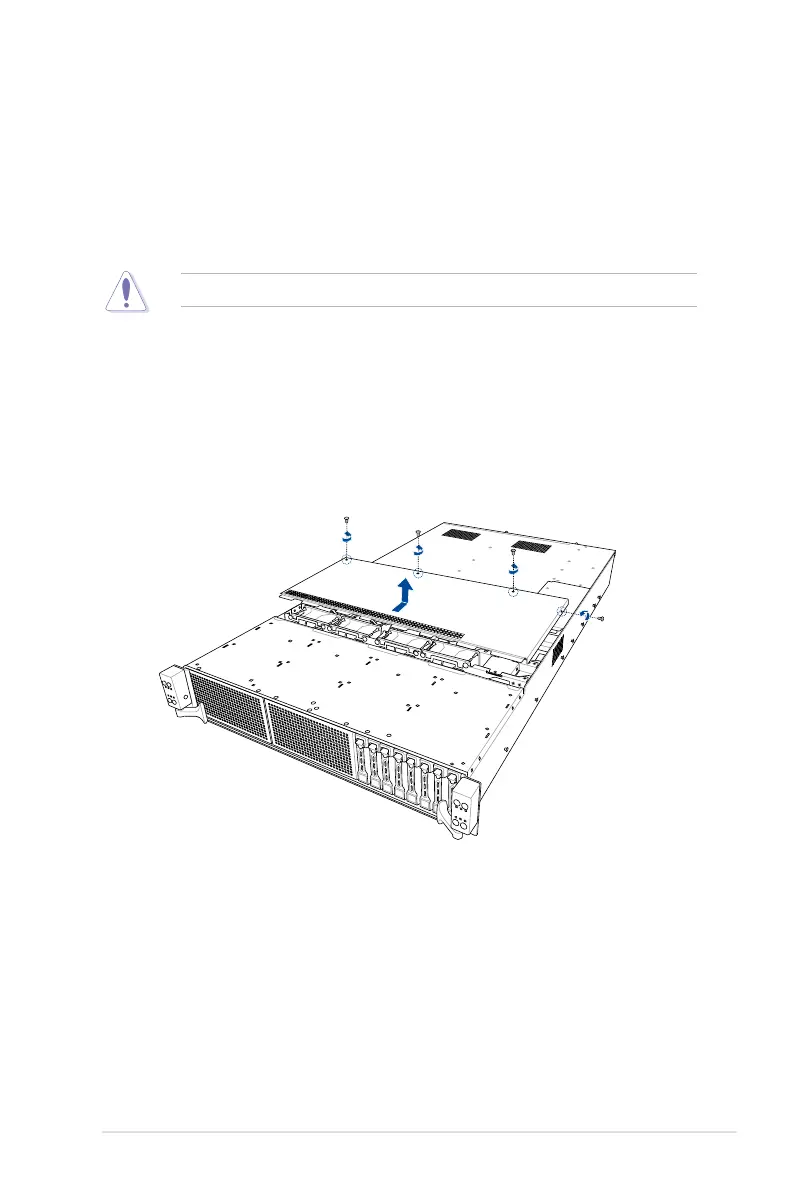

1. Loosen the four (4) screws on the top and the side of the top cover, then push the top
cover towards the rear of the system and remove the top cover.
2.8.1 System fan
