Chapter 1 – Instrument installation
UM-23900B-U User manual ATEQ CDF60 Page 6/40
2. ATEQ CDF60 INSTALLATION

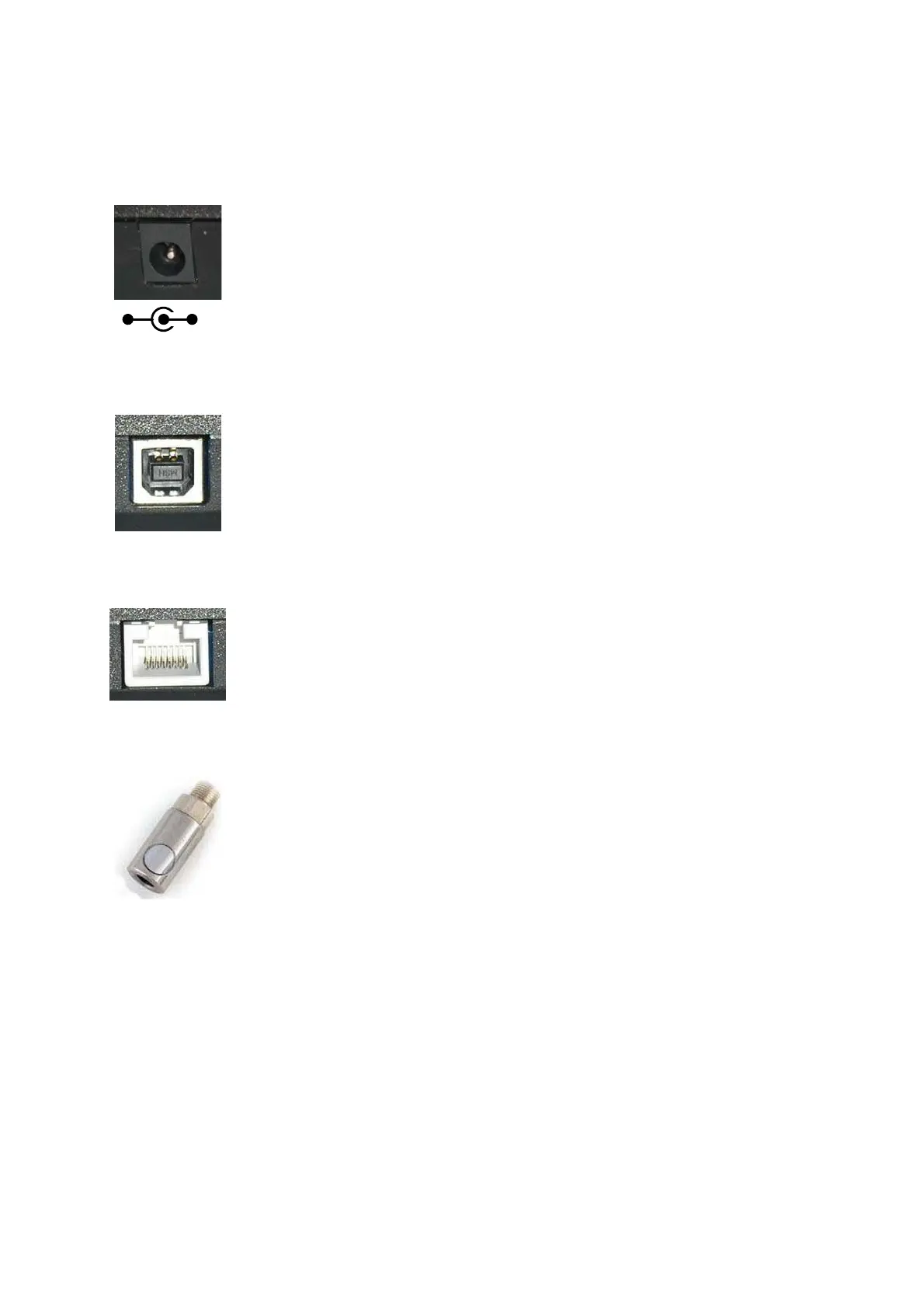

2.1. SUPPLY CONNECTOR 24 V DC
+ 24 V DC 0 V DC
Connector for the 24 V DC supply. For the battery charging. (Jack
connector).
2.2. USB CONNECTOR
Allows the connection to a PC. (Type B USB connector).
2.3. RS232 CONNECTOR
Allows the connection to a printer with a RS232 connection. RJ45 type
connector. For further information see chapter 7, paragraph 1.2 "RS232
connection".
2.4. PNEUMATIC CONNECTOR (FIRST INPUT)
Allows the connection to the flow to be measured (quick connector
"Staublï" RBE03 female type).
