Chapter 7 – PC installation
UM-23900B-U User manual ATEQ CDF60 Page 35/40
1.2. RS232 CONNECTION
1) To connect the CDF60 to the RS232 port
(PC com1 or com2) it needs the RJ45 wire
and the SubD adapter.
2) Adjust on the CDF60 and in the PC the same RS parameters on each side. For
example:
¾ Baud rate: 19200.
¾ Bits count: 8.
¾ Parity: even.

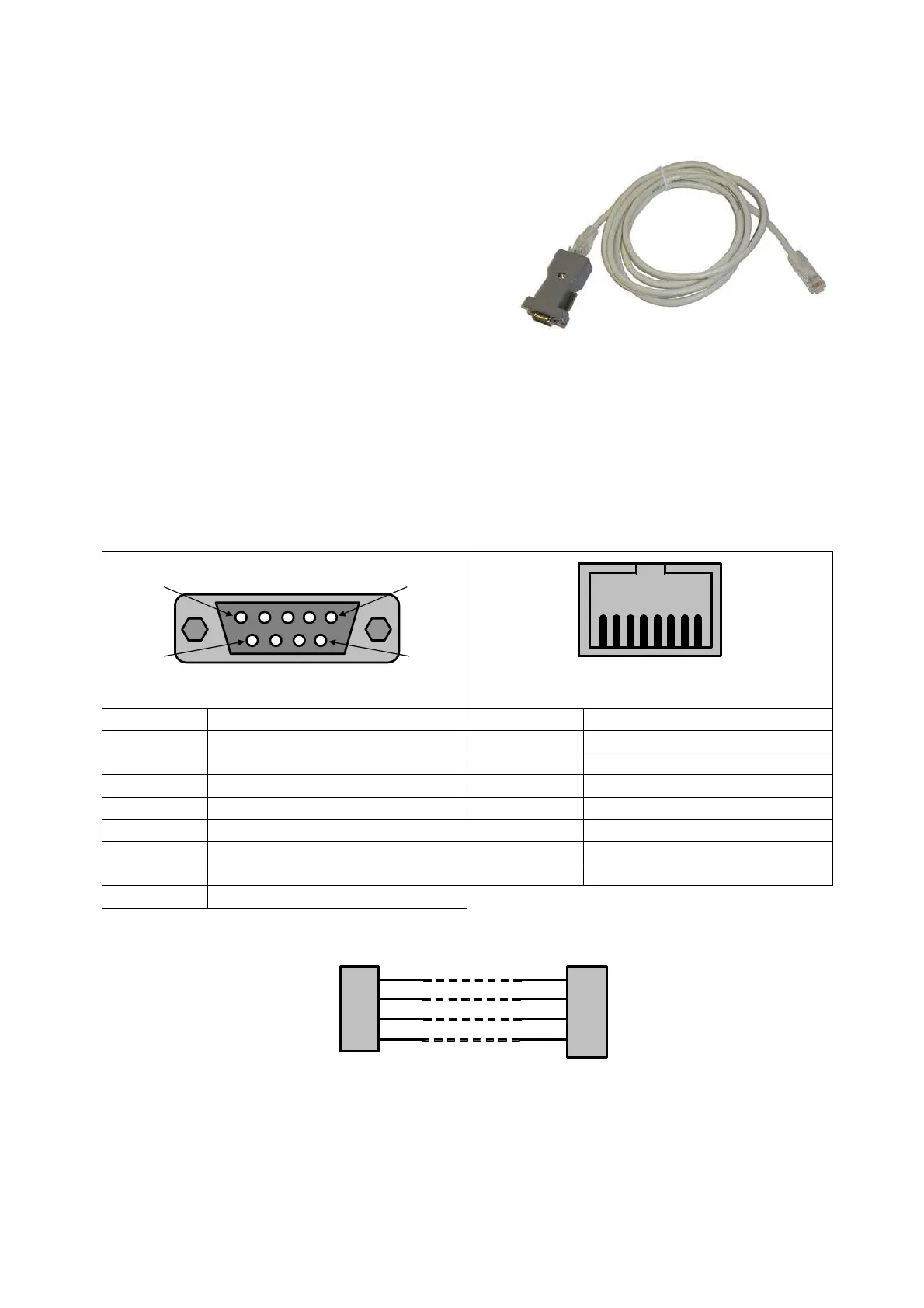

1.3. RS232 CABLE DIAGRAM
1
6
5
9
SubD (9 pins)
8
4 1
RJ45 (8 pins)
Pin 1 Not used Pin 1 Not used
Pin 2 RXD Data reception Pin 2 Not used
Pin 3 TXD Data emission Pin 3 Not used
Pin 4 Not used Pin 4 Ground
Pin 5 Ground Pin 5 RXD Data reception
Pin 6 Not used Pin 6 TXD Data emission
Pin 7 RTS request to send Pin 7 CTS clear to send
Pin 8 Not used Pin 8 Not used
Pin 9 Not used
7 6 5 4
7 2 3 5
Gnd
Rx data
Tx data
CTS
Gnd
Tx data
Rx data
RTS
SubD9 RJ45
