3.4. GAS
This parameter allows calculating the flow measurement for a other gas, default gas:
air.
The avalaible parameters are for the following gas:
¾ Helium (He),
¾ Nitrogen (N
2
),
¾ Other (the parameter had to be indicated, consult us).

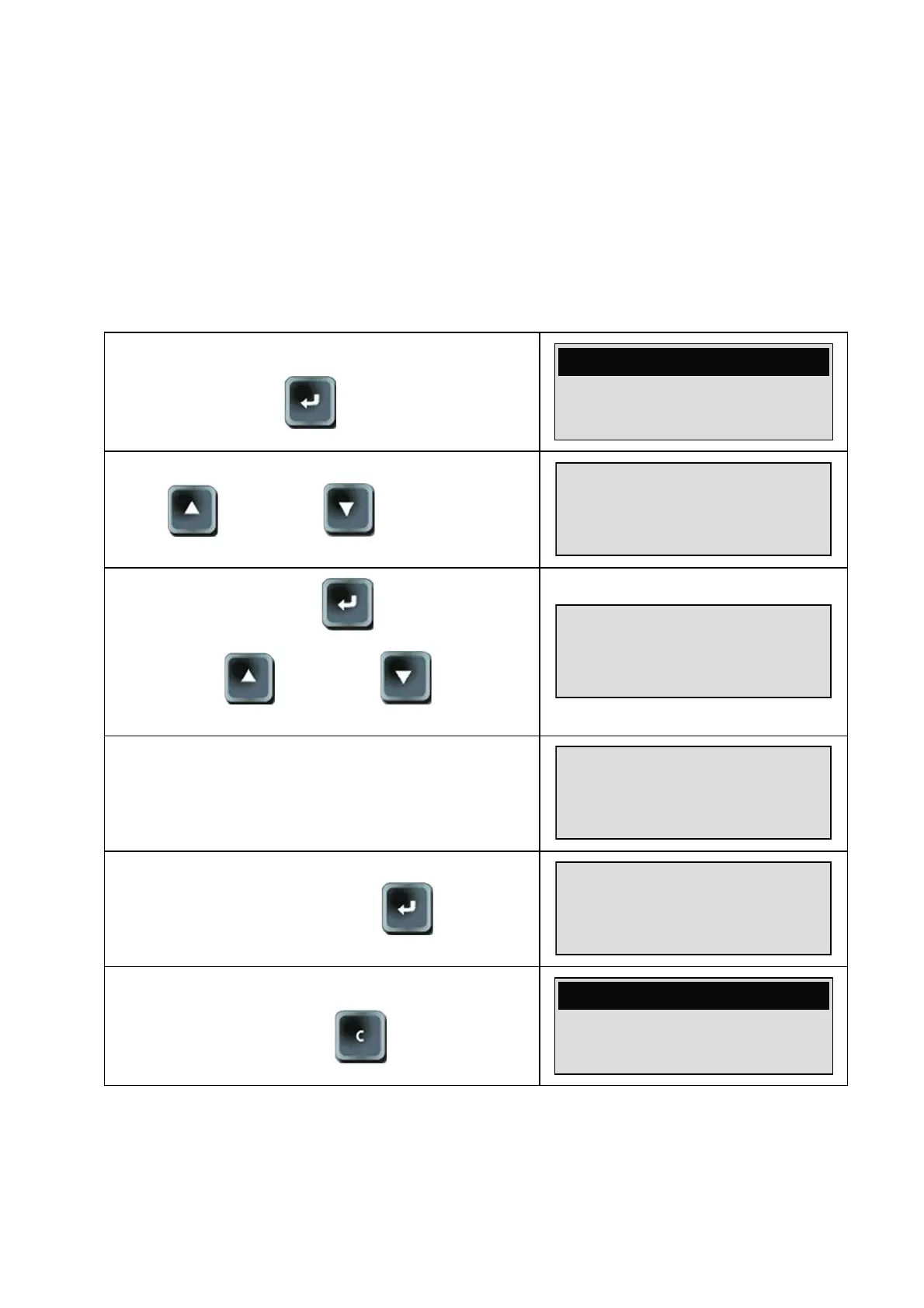

Enter into the parameters menu, by pressing and
old the ENTER
during 3 seconds.
.
cm
m
n
AIR STD.COND.
FLOW : 09.36
TEMP. : 25.8°C
ATM.P : 1010.5 hPa
The PARAMETER menu is displayed. By using the
UP
and DOWN key select GAZ
parameter.
FLOW UNIT.: cm3/min
STD.COND.: NO
Then press the ENTER key to modify the
parameter available the gas list is displayed. By
using the UP
and DOWN key choose
the gas to be measured.
>AIR
HELIUM
It's possible to configure a different gas than those
available, for that select the OTHER option, then
configure the applied coefficient. For further
information, contact ATEQ company.
HELIUM
NITROGEN
Validate with the ENTER key.
>AIR
HELIUM
To return to the measurement mode, press
CANCEL
.
.
cm
m
n
AIR STD.COND.
FLOW : 09.36
TEMP. : 25.8°C
ATM.P : 1010.5 hPa
