Operation Overview
User interfaces

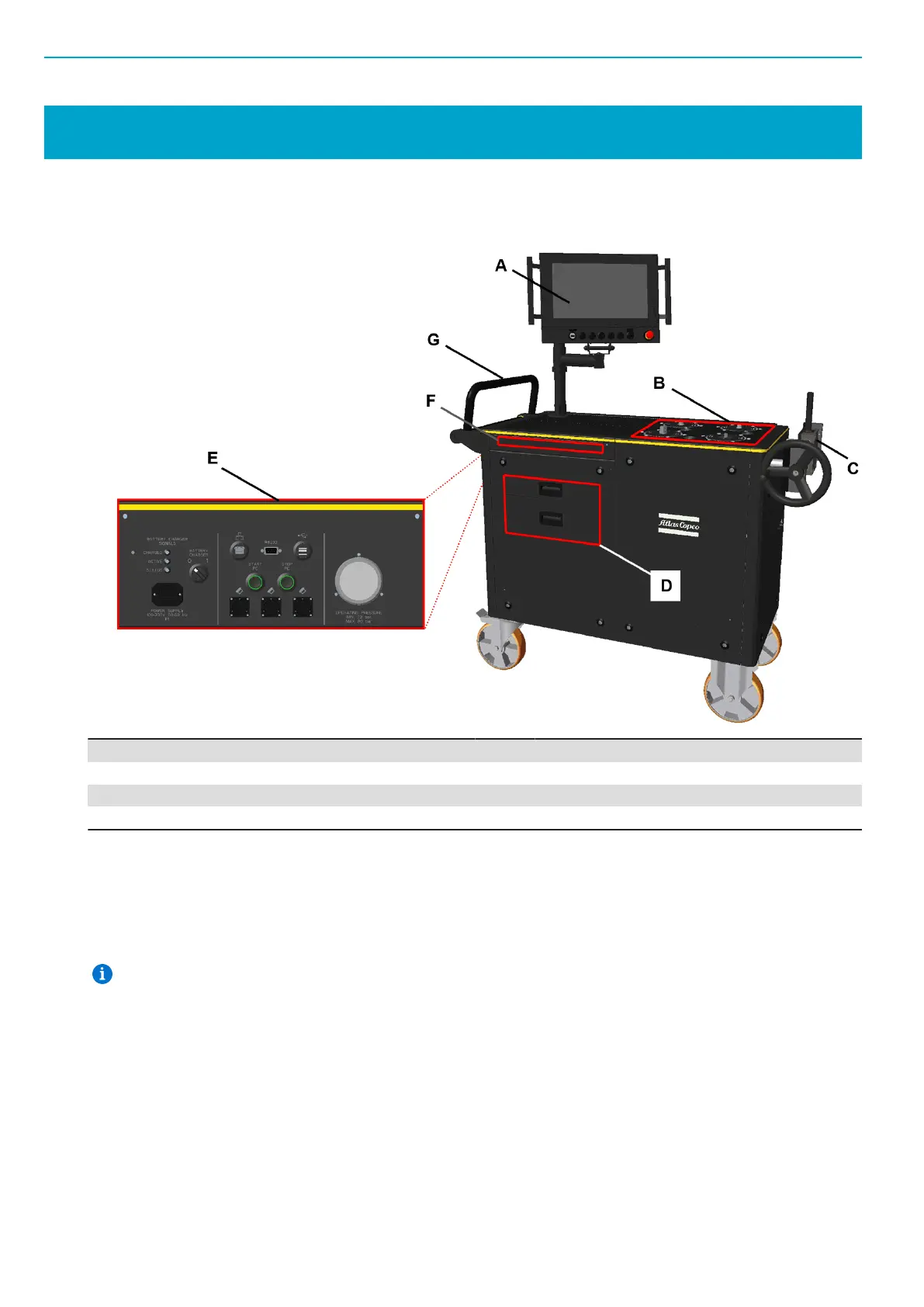

Below are the user interfaces of the STbench:
A STbench PC / STbench Docking Station B STbench top plate
C Wrench Rig D Drawers
E Main panel F Keyboard
G Handlebar
STbench PC / STbench Docking Station
There are two types of interfaces of STbench: the first one holds the PC, while the second one holds the
Docking Station. The Docking Station is the housing of the STpad.
Both PC and STpad have a touch-screen.
Operate the STbench with Docking Station only with the STpad (for more information, see the STpad
Manuals).
The PC installed on STbench with PC must meet the following requirements:
■
separately certified and fulfilling the national requirements in the countries in which it is to be used
■
nominal operating voltage: 24 Vdc (extended range 23 ÷ 28 Vdc)
■
maximum current consumption: 5 A
■
maximum operating temperature: + 40 °C
■
Operating system: Windows 10
■
Display: 1920 (W) x 1080 (H)
■
CPU: Intel Core i5-5350U 1.8 GHz
■
Memory: 250 GB
