STbench EN Operation

Installing the Articulated arm on the STbench

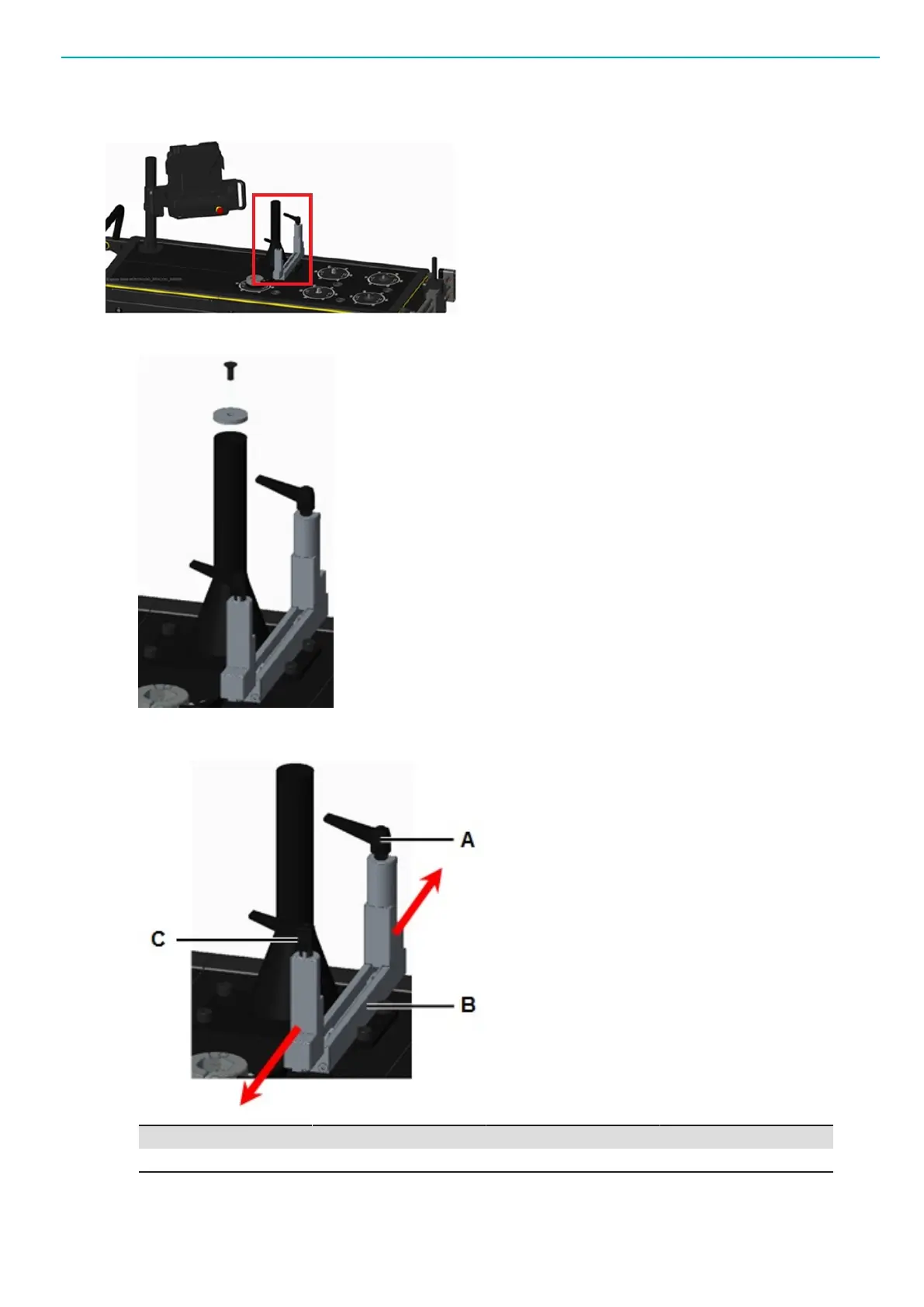

1. Remove the screw (M8) and the relative washer located on the top of the “Articulated arm support”.

2. Loosen the levers that lock the two mechanical blocks, located near the “Articulated arm support”.

Then move each mechanical block along the support, as show in the figure:

A Lever B Support

C Lever
