STbench EN Operation Overview
© Atlas Copco Industrial Technique AB - 9839 0880 01
27

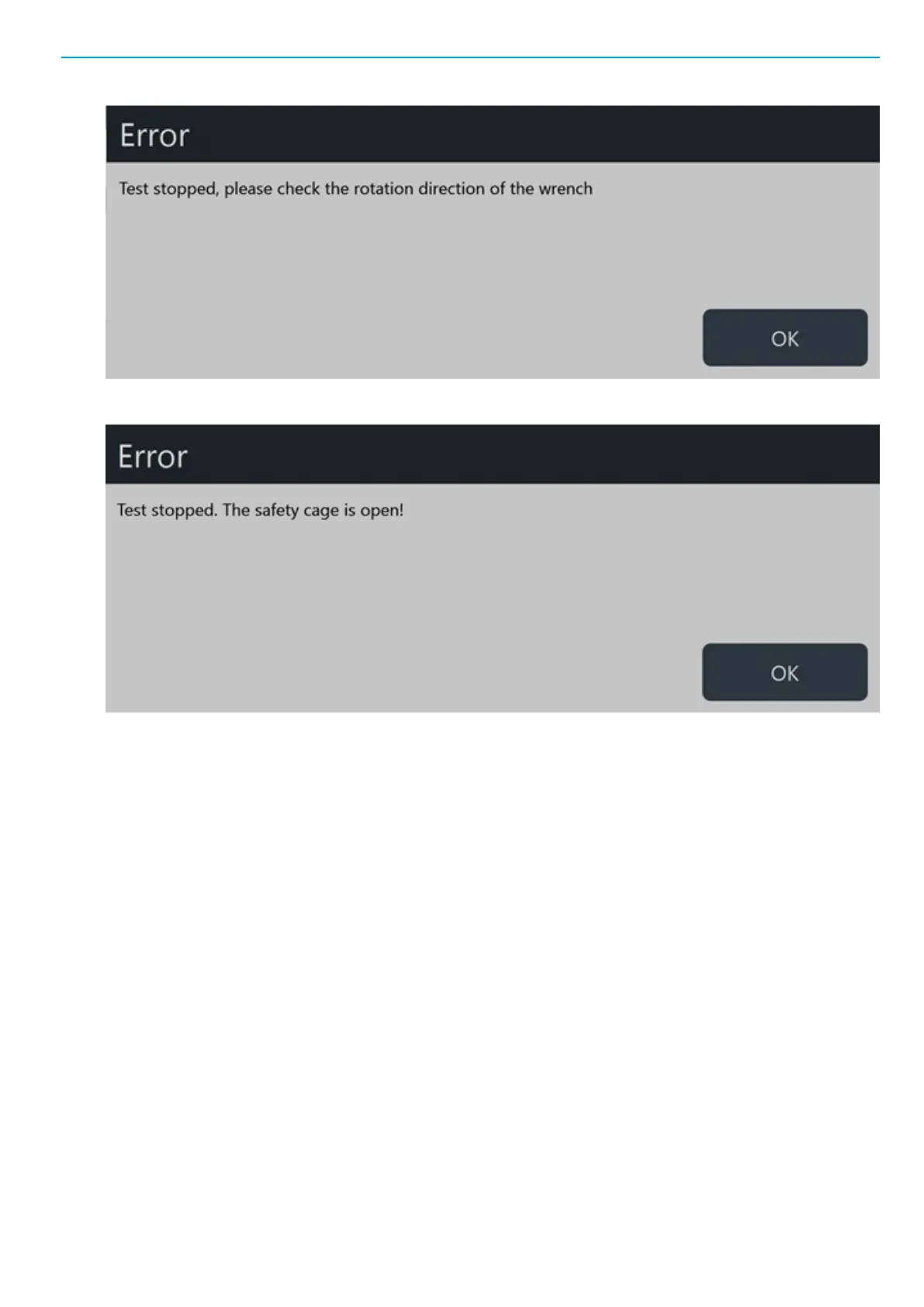

Error: Test stopped. Please check rotation direction of the wrench.
Error: Test stopped. The safety cage is open!
Drawers
A set of drawers is on the front panel of the STbench.
Below is the list of accessories included into the drawers:
■
Adapters (depending on the transducers installed)
■
Joint Simulator (depending on the SRTT-B installed)
■
Reaction bar
■
Safety Information
■
USB storage device (containing the STbench Manuals)
■
Power cables
Main panel
The main panel is the main interface between the STbench and the operator:
