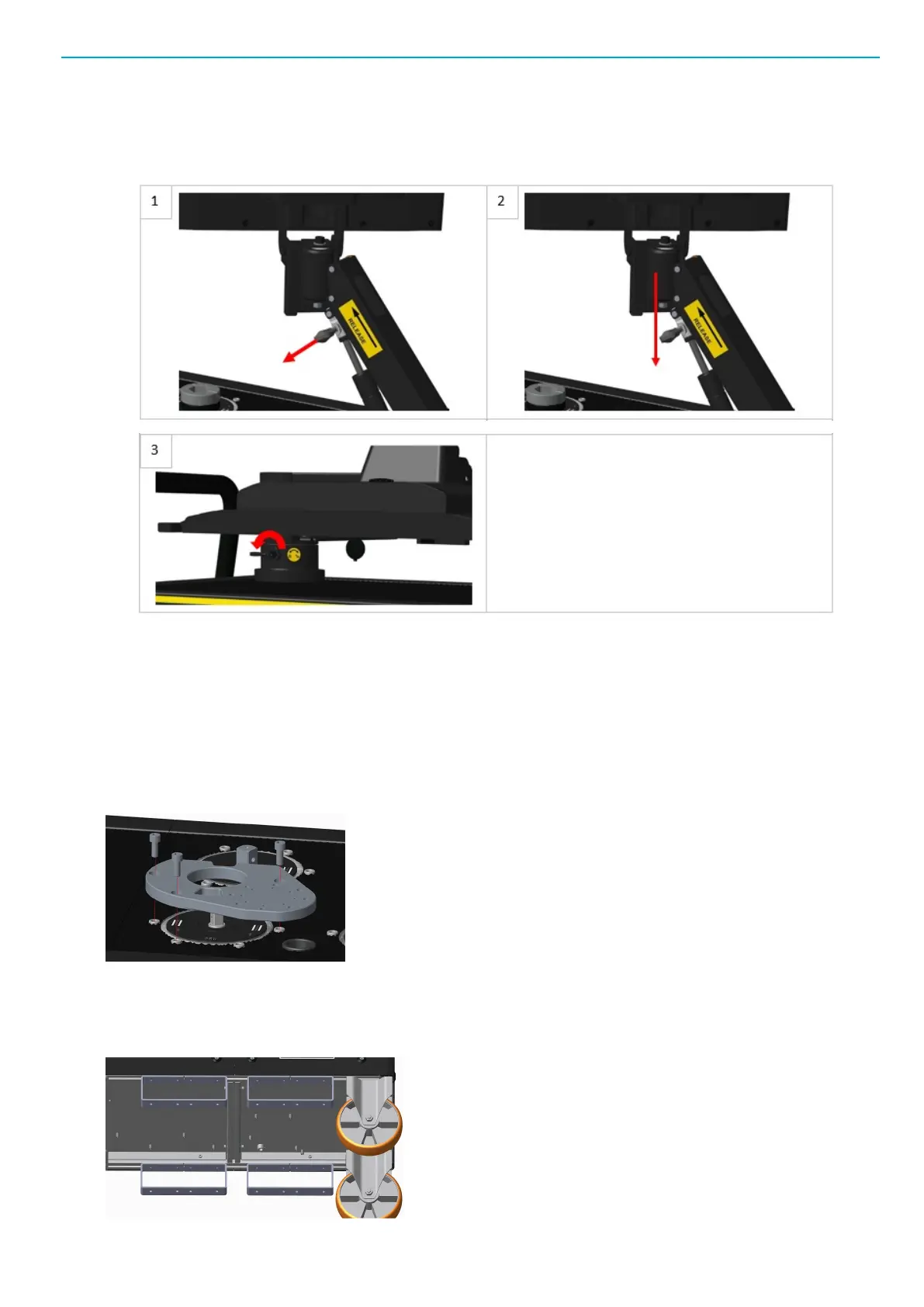

2. Push the monitor downward without releasing the handle.
3. When the monitor reaches the top plate of the STbench, release the handle to block the monitor.
4. On the base of the monitor support, turn the handle to fix the monitor (refer to the figure 3).
Flange for SRTT-B
To add an additional SRTT-B transducer on the bench, it is necessary to assemble the flange shown in
the following figure.
After assembling the flange on the top plate of the STbench, the SRTT-B transducer can be fix on the
flange.
The additional SRTT-B placed on the top of STbench have to be connected to the external transducers
control panel.
Forklift
To move the STbench with forklift, use the specific devices, placed under the bench.

Atlas Copco STbench Specifications

General

Brand	Atlas Copco
Model	STbench
Category	Test Equipment
Language	English
