STbench EN Operation Overview
© Atlas Copco Industrial Technique AB - 9839 0880 01
31
■
Pin E > Shield
■
Pin F > FB encoder
■
Pin G > Not connected
■
Pin H > FA encoder
■
Pins J/K/L/M/N > Not connected
■
Pin P > V- encoder
■
Pin R > V+ encoder
■
Pins S/T/U/V > Not connected
Start PC / Stop PC
For powering on/off the STbench press respectively Start PC and Stop PC.
Power Supply socket
From the Power Supply socket, connect the STbench to the AC Power with the correct power supply ca-
ble.
Do not use the power supply if the plug, the mains cable or other parts are damaged.
In case of replacement, any power supply used to supply power to the STbench must meet the require-
ments of the following Type A or Type B power supplies:

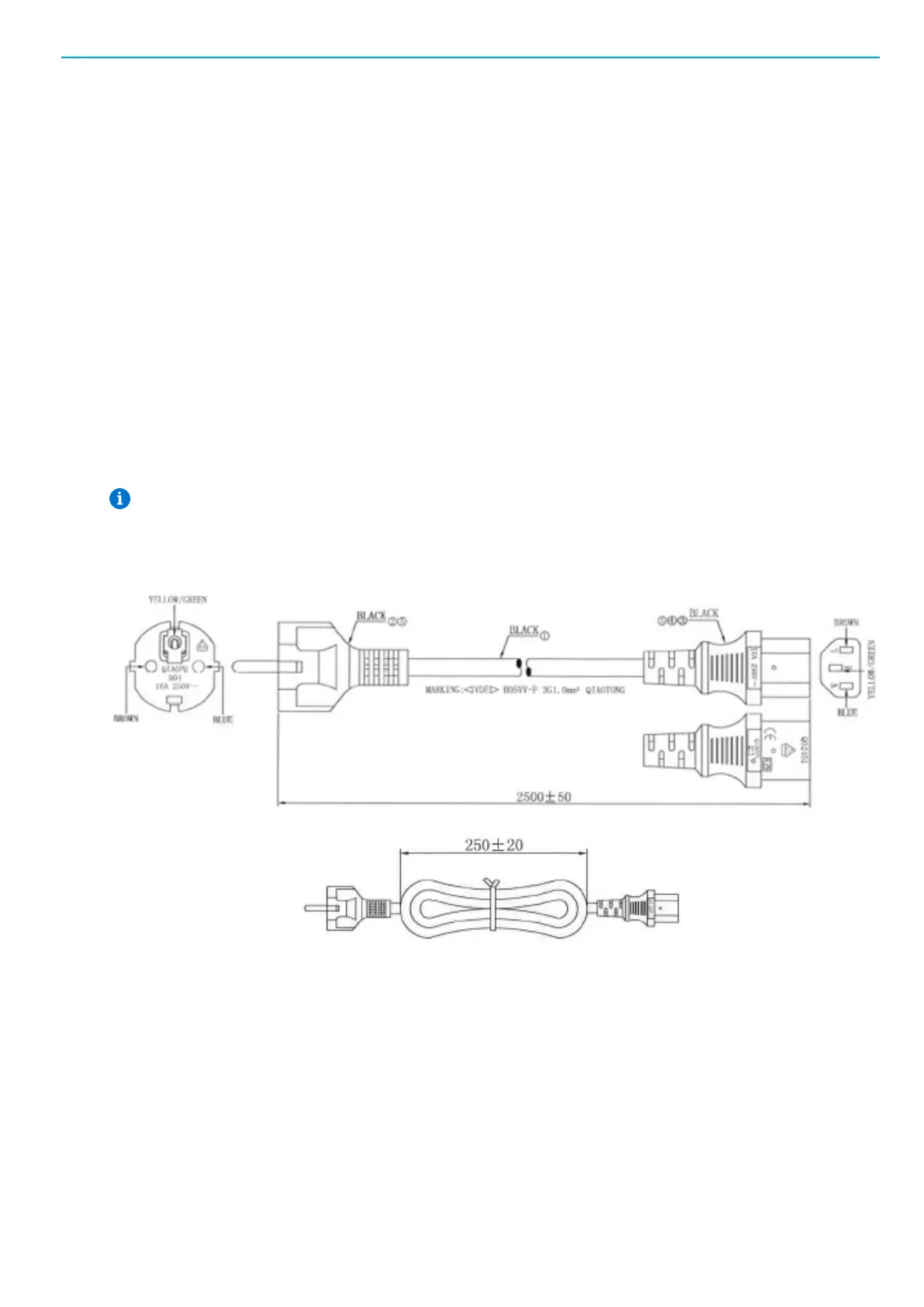

Type A
1 - CABLE: H05VV-F 3G1, 0mm
2
32/0, 20BS*2, 5*3C (BROWN, BLUE, YELLOW/GREEN)*6, 9 BLACK
L=2500 mm
2 - INSERTS FOR SCHUKO PLUG (TWO-PIN PLUG INSERT, WITH EARTHING CONTACT 16A 250V),
WHITE
3 - TERMINAL: QT3, IEC60320 C13, BRASS
4 - HOSING: QT3, IEC60320 C13, BRASS
5 - PLUG PVC: KCS70-5001-85, BLACK
