Atlas Copco STbench User Manual

Operation Overview EN STbench
32
© Atlas Copco Industrial Technique AB - 9839 0880 01

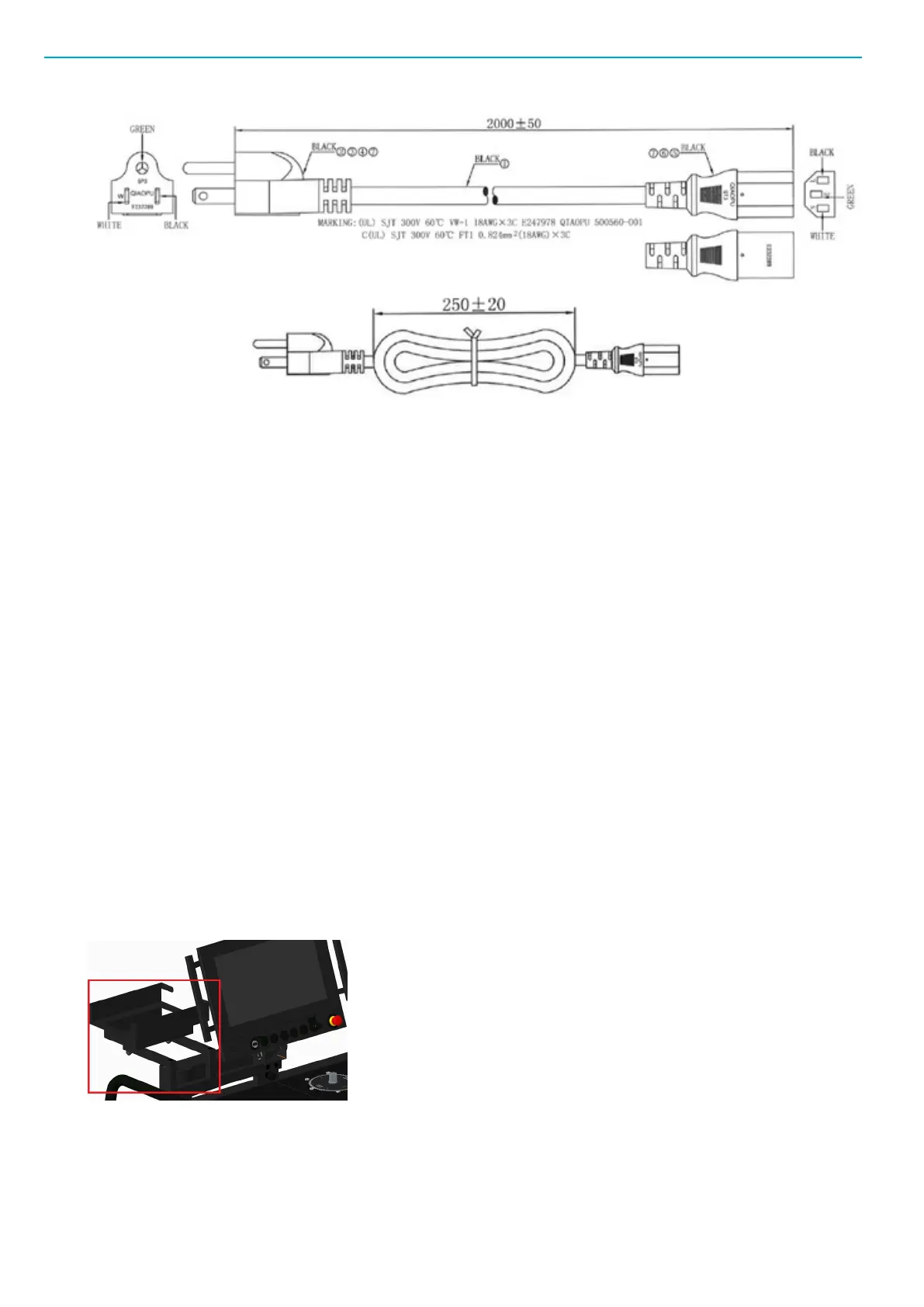

Type B
1 - CABLE:SJT 18AWGx3C 29/0, 19*2, 8*3C (BLACK, WHITE, GREEN)*7, 8mm BLACK L=2000mm
2 - TERMINAL: NEMA 5-15P POLARITY SMALL PIECE, BRASS, NICKEL, PLATING
3 - TERMINAL: NEMA 5-15P, 4, 75 COPPER TUBE, BRASS
4 - NEMA 5-15P AMERICAN THREE PLUG INSIDE FRAME, BLACK
5 - TERMINAL: QT3, IEC60320 C13, 20, 3*2, 1*4, 5, GOLD
6 - HOSING: QT3, IEC60320 C13, WHITE
7 - PLUG PVC: KCS70-5001-85, BLACK
Keyboard
A keyboard is available into a small drawer placed on the front side panel of the STbench. The keyboard
is useful for inserting input data into the STbench software.
The keyboard has also an embedded mouse.
Handlebar
Use the handlebar to move the STbench to the necessary workstation.
Printer support
The printer support is an optional accessory installed on monitor support.
The function of this accessory is to support the printer used for the label printing.
Monitor support
There is a dedicated monitor support that can be folded for easier transportation and stock.
1. On the arm that support the monitor, pull the handle shown in the figure 1.
