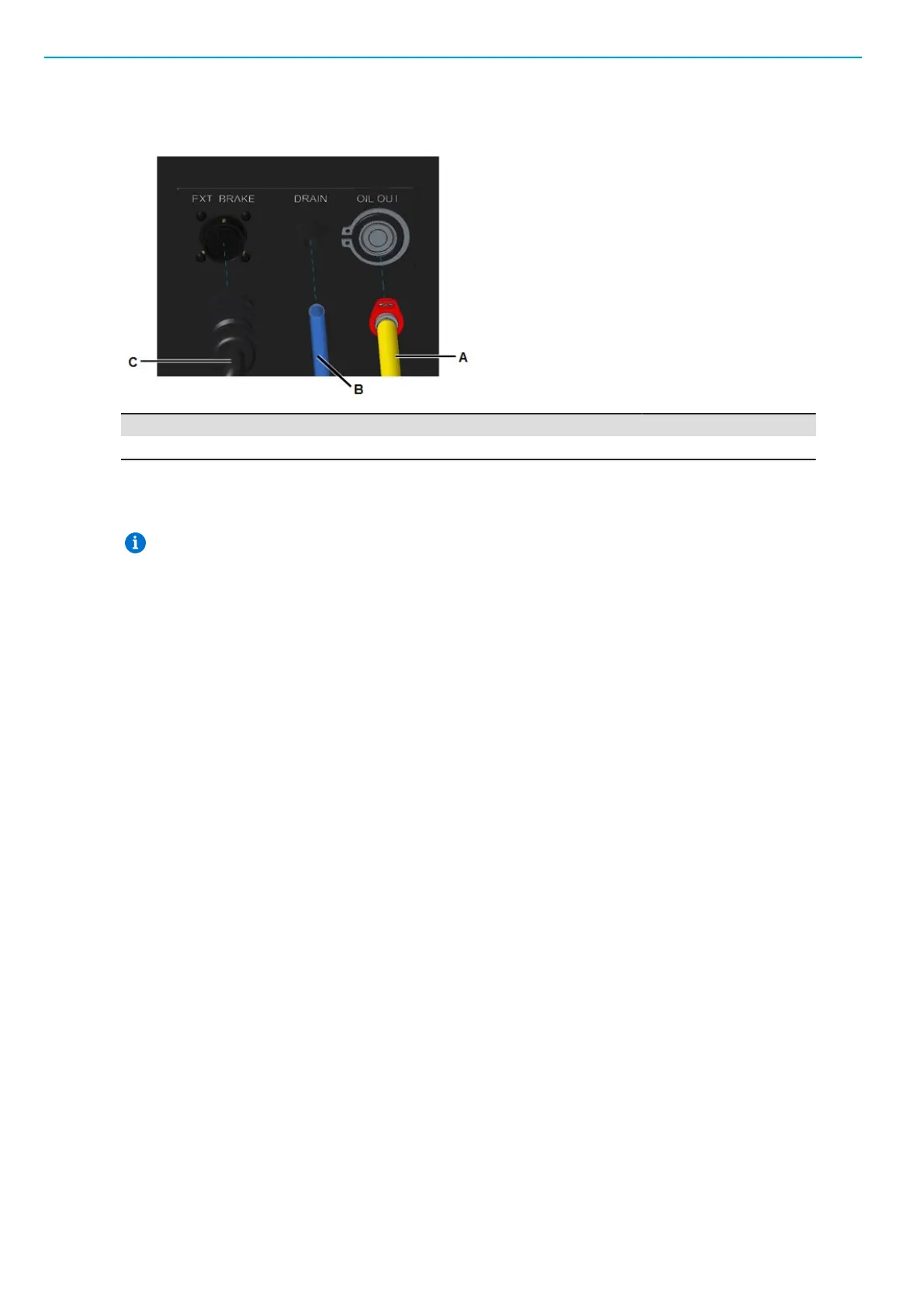

11. Working on the STbench, connect the cable coming from the Articulated Arm and the oil tubes as
shown in the following picture:
A Main oil tube B Oil leakage tube
C Signal cable
12. Lock the Articulated Arm within the two mechanical blocks: move the mechanical blocks until they
are in contact with the Articulated Arm and tighten the respective levers. Refer to the following pic-
ture:
Before starting a test, the Articulates arm must be always locked with the mechanical block.
13. Switch on the STbench.
Rotating the brake placed on the Articulated arm
The brake can rotate according to the testing tool position.
For rotating the brake, perform the following procedure:
