Atlas Copco STbench User Manual

STbench EN Operation Overview
© Atlas Copco Industrial Technique AB - 9839 0880 01
21
Running a test on the Motorized Cell
The following procedure describes the preliminary operations to run a test on the Motorized Cell module.
If the wrench is longer than 500 mm (measured from the end fitting tool to the mid handle), follow the
instructions from step 1 to step 4 to install the extension.

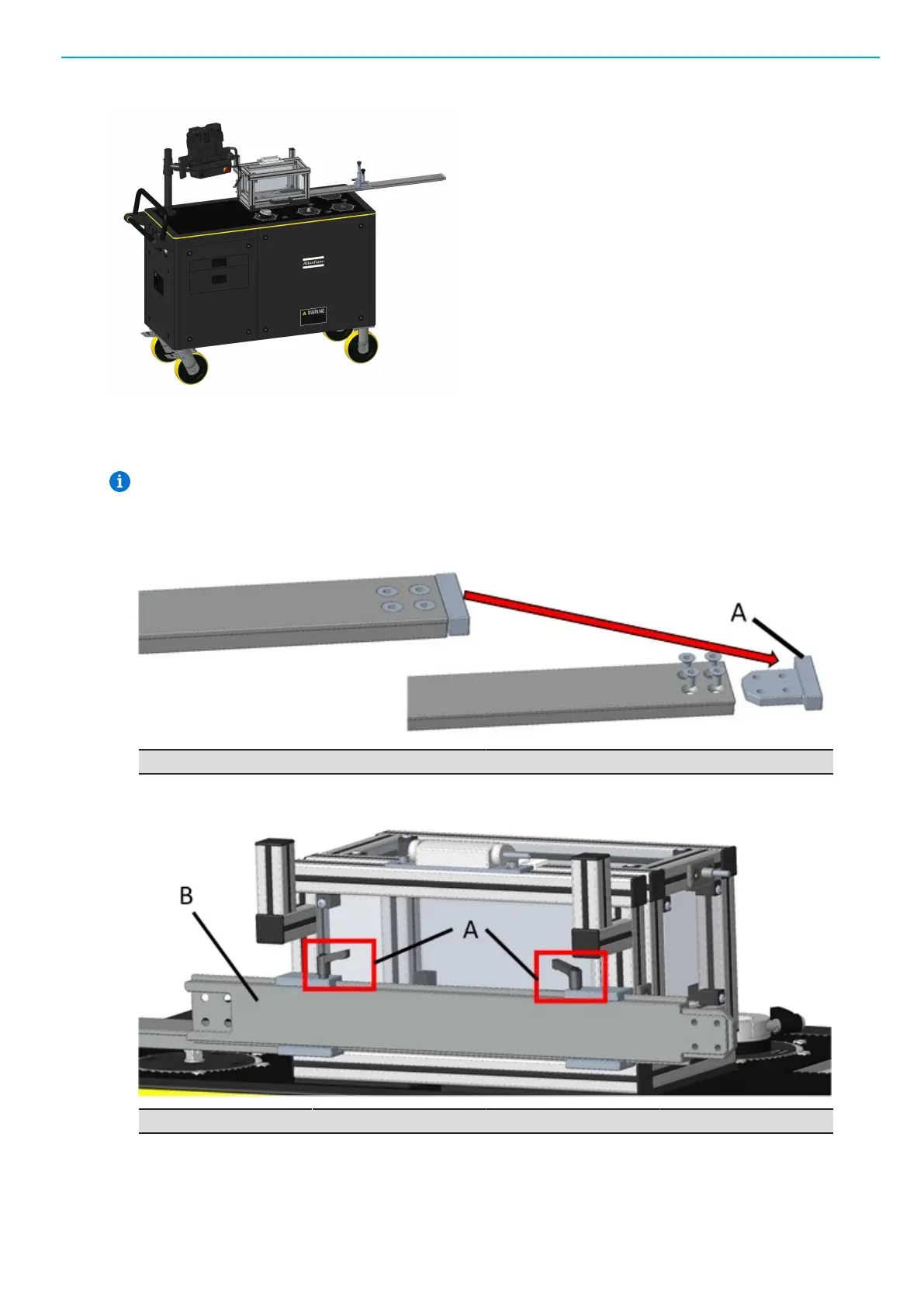

1. Unscrew the four M8x16 screws and remove the slide block (A) from the slide.
A Slide block
2. Rotate the two handles (A) placed behind the safety cage and remove the slide extension (B).
A Handles B Slide extension
