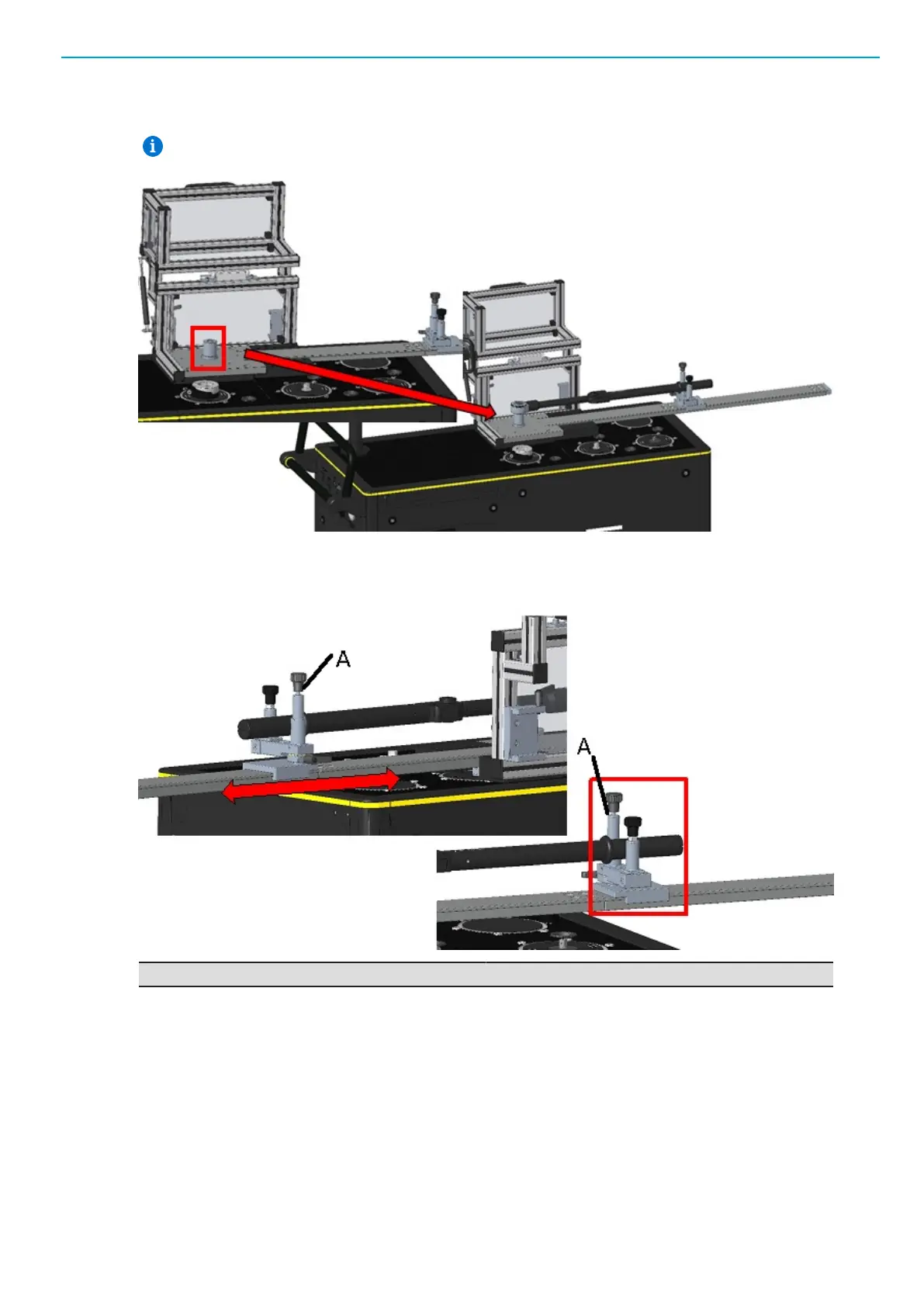

6. Position the adapter on the cell. Then, place the tool on the adapter.
Make sure that the end fitting tool direction is the same set during the configuration of the test.
7. Unscrew the reaction bar knob (A) and adjust the position of the support by sliding it forward or back-
ward.
When the support is correctly positioned in the middle of the handle, screw the reaction bar knob (B).
A Reaction bar knob
