Atlas Copco STbench User Manual

Operation EN STbench
42
© Atlas Copco Industrial Technique AB - 9839 0880 01

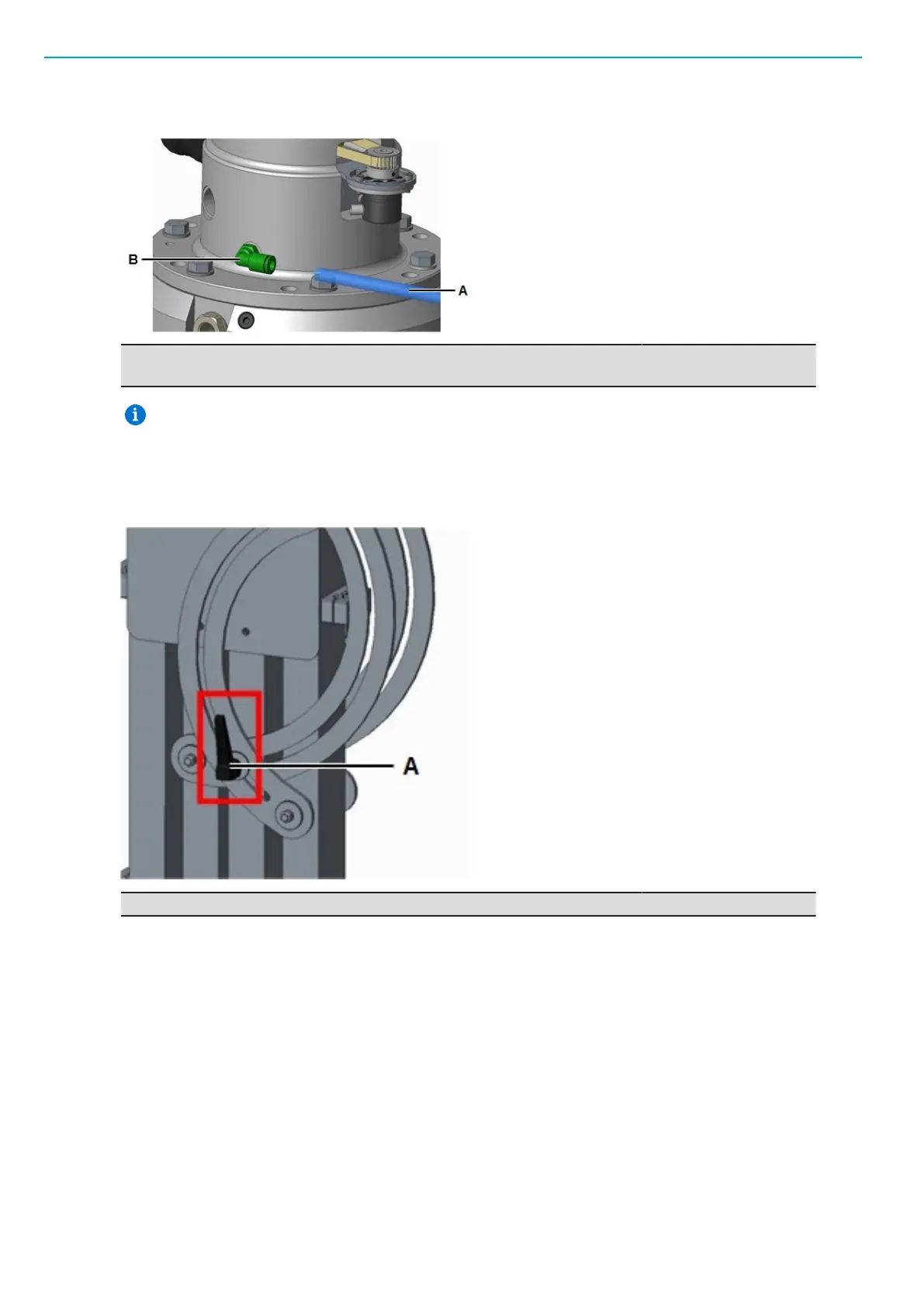

7. Connect the Oil leakage tube to the relative connector of the brake. Refer to the following picture:
A Oil leakage tube B Brake connector for oil
leakage tube
The brake has two connection points for the oil leakage tube. According to the position of the
brake, the right configuration is the following:
■
Higher connection point: oil leakage tube.
■
Lower connection point: plug to avoid leakage.
8. Lock the locking device placed at the top of the Articulated Arm, as show in the picture below:
A Locking devices
