Atlas Copco STbench User Manual

STbench EN Operation
© Atlas Copco Industrial Technique AB - 9839 0880 01
41

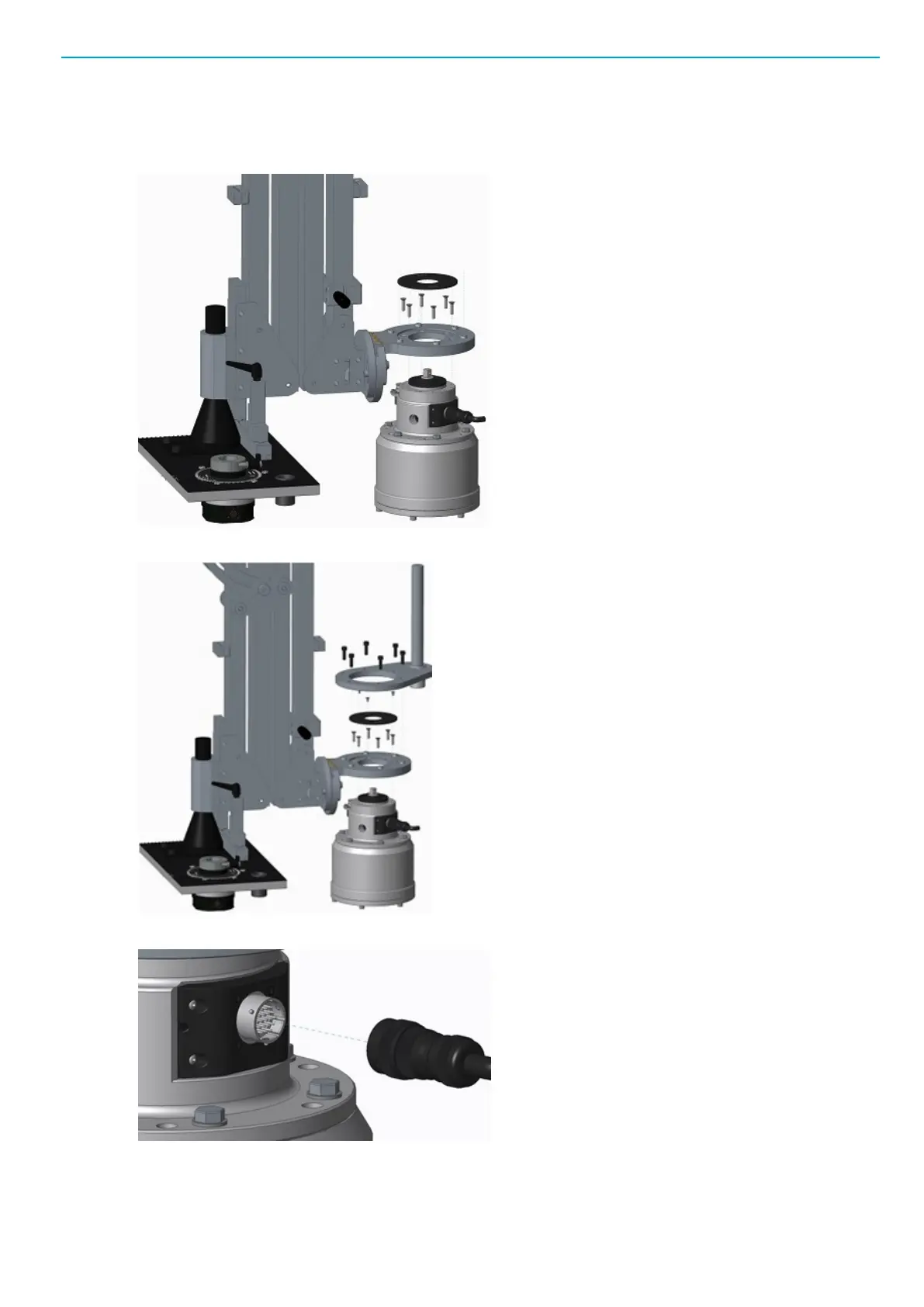

4. Align the connection holes of the brake with the relative holes of the plate placed on the free tip of the
Articulated Arm. Then Fix the brake to the Articulated Arm by means of the six screws (M6) as shown
in the picture below:
5. On the upper side of the brake, install the protective flange by means of three screws (M4).
6. Connect the cable coming from the Articulated Arm to the brake.
