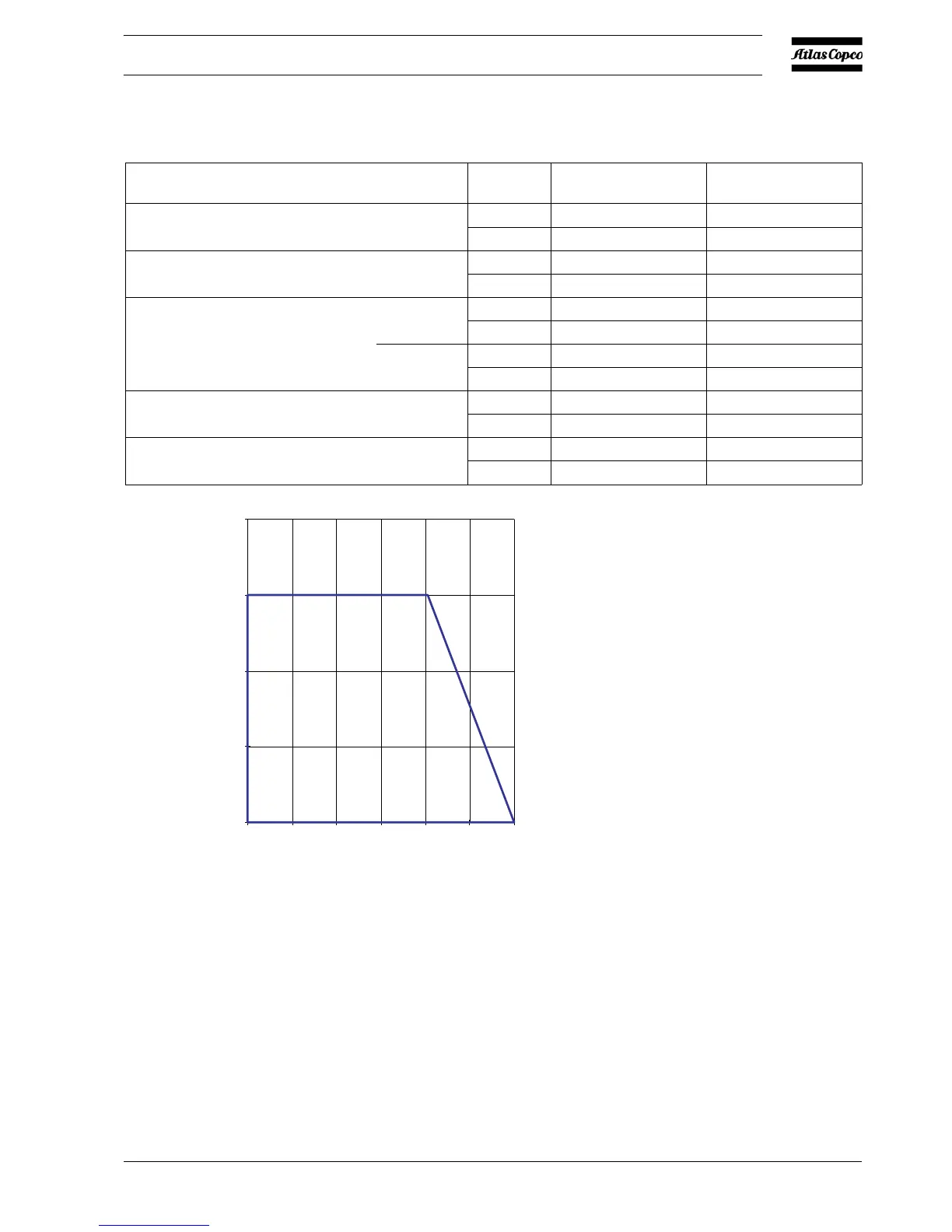

8.2.2 Limitations
Altitude unit performance curve
Max. allowable working pressure as a function altitude and ambient temperature.
XRHS 506 - XRHS 1100 CD6 20 bar(e)
XRVS 476 - XRVS 1000 CD6 25 bar(e)
Designation XRHS 506 -
XRHS 1100 CD6
XRVS 476 -
XRVS 1000 CD6
Minimum effective receiver pressure bar(e) 12.5 15.5
psi 182 225
Maximum effective receiver pressure,
compressor unloaded
bar(e) 22 27
psi 319 392
Maximum ambient temperature at
sea level
Standard °C 50 50
°F 122 122
Aftercooler
option
°C 45 45
°F 113 113
Minimum starting temperature °C -10 -10
°F 14 14
Minimum starting temperature, with coldstart
equipment
°C -25 -25
°F -13 -13
50
616
701
795
899
0
1000
2000
3000
4000
-10 0 10 20 30 40 50
Altitude m
Atmospheric pressure mbar
Temperature degrees celsius
