Instruction Manual
40 2954 2510 03

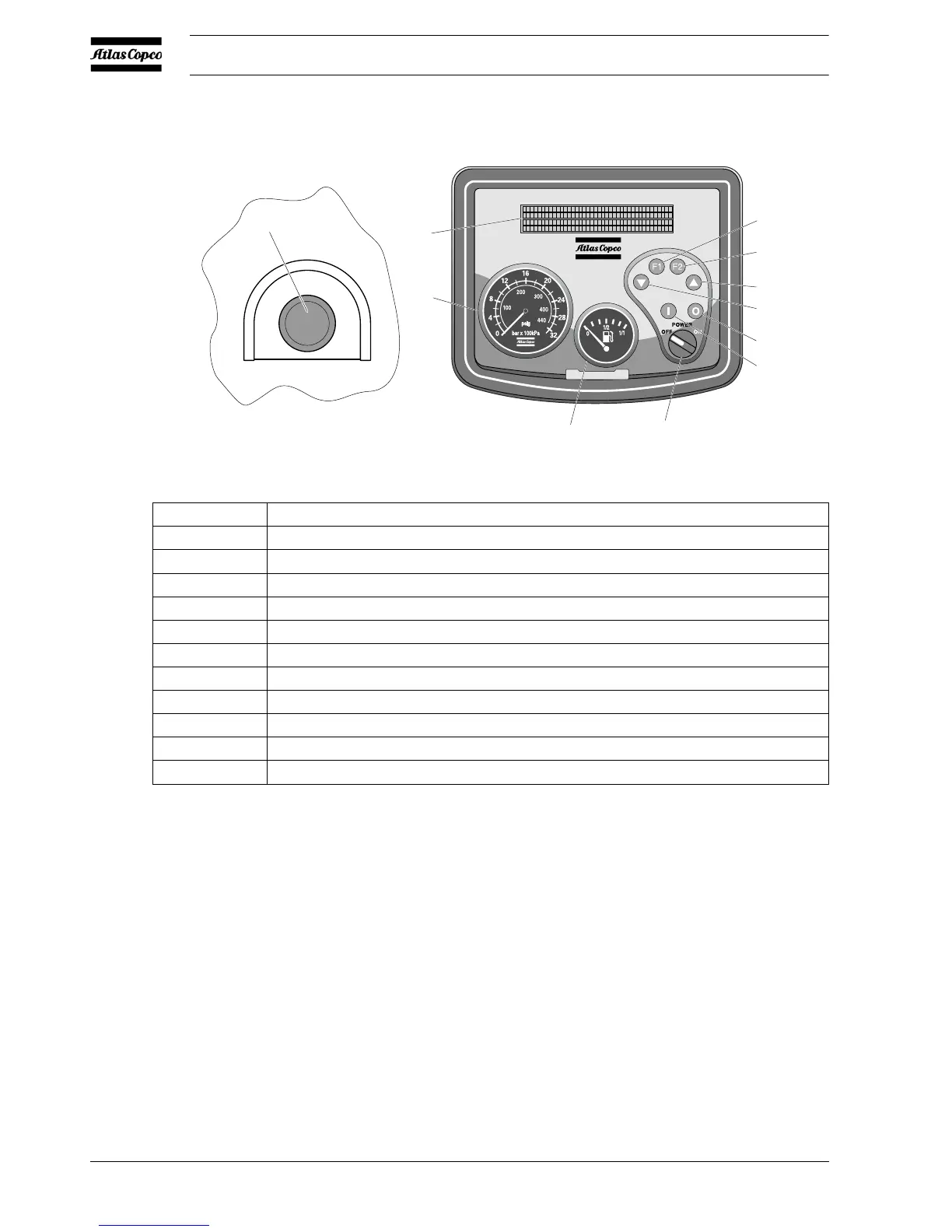

3.4.1 Control panel
Control panel
(1)
(2)
(3)
(4)
(5)
(F1)
(F2)
(6)
(O)
(I)
(ON/OFF)
Reference Name
1 Emergency stop
2 Display (4 rows, 40 characters / row)
3 Pressure gauge
4 Arrow Up button
5 Arrow Down button
6 Fuel level gauge
F1 F1 Function button
F2 F2 Function button
0 Stop button
I Start button
ON/OFF Power ON/OFF switch
