2.4 Regulating system

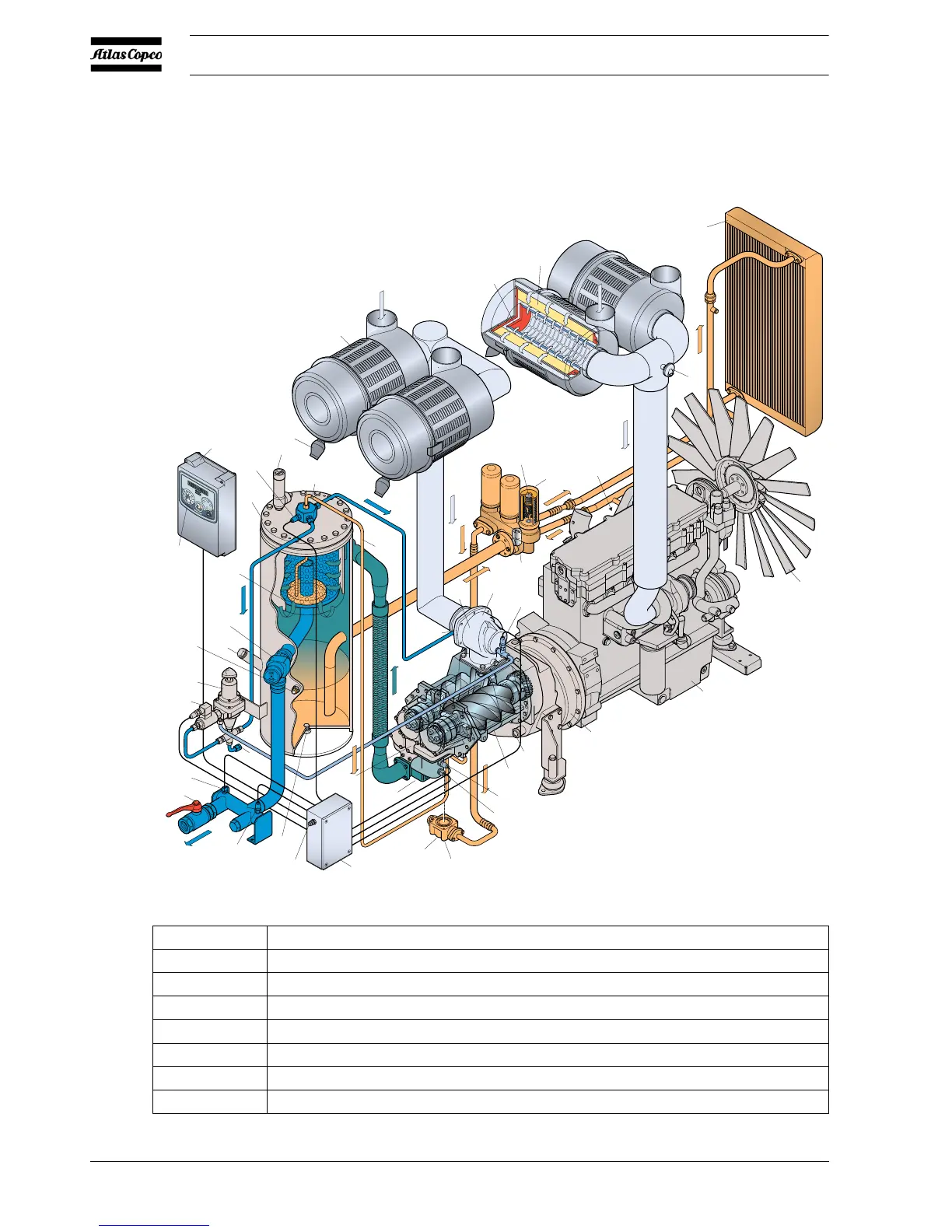

2.4.1 Overview
(AFS)
(DP)
(TBV)
(E)
(F)
(C)
(UA)
(BOV)
(OC)
(OSV)
(MPV)
(SV)
(CU)
(TV)
(OLG)
(FPco)
(CEhp)
(CElp)
(FR)
(OS)
(AR)
(RV)
(LV)
(SC)
(CV)
(RPS)
(AFce)
(AFe)
(AOV)
(SL)
(SV)
(WPS)
(WPG)
(TS)
(TS)
(DP)
(DP)
(VH)
(PS)
(PS)
(CBE)
(F1)
(BVof)
(OFce)
(VV)
Reference Name
AFce Air Filter (compr. element)
AFe Air Filter (engine)
AFS Air Filter Switch
AOV Air Outlet Valves
AR Air Receiver
BOV Blow Off Valve
BVof Bypass Valve oil filter
