Instruction Manual
2954 2510 03 83
5.5.3 Brake adjustment wagon ABS
Adjusting the linkage
• The parking brake is adjusted by using the turnbuckle (8). Adjust till the play in the linkage is 1-
3 mm (max. 3 mm is allowed).
Apply the parking brake lever several times by hand with a force of 200 to 300 N and put it
back into the –not engaged- tooth “1” position.
Adjust the turnbuckle (8) as described above.
Testing the parking brake
• For testing the parking brake, apply the parking brake lever. The nominal brake power must be
reached between the 16
th
and 23
rd
tooth of the toothed segment (“Z”).

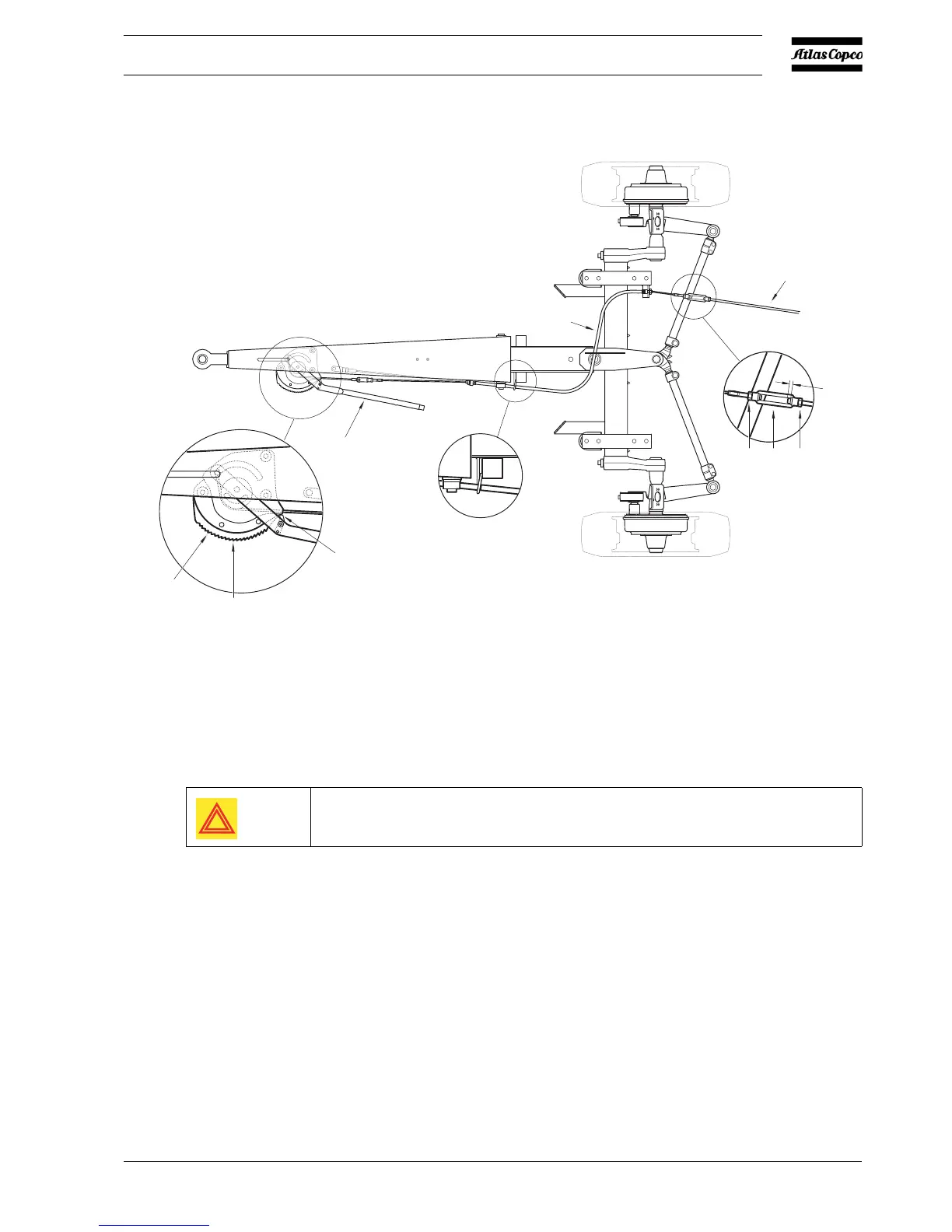

"W"
"Y"
(8)(11) (11)
(l)
"1"
"Z"
"16"
"23"
(10)
"Z"
"W"
(9)
(7)
"Y"
Tighten all lock nuts (11) (Torque: 24 Nm).
