Instruction Manual
2954 2510 03 45
3.4.7 Warming up
When the engine started, the Control Box executes following Warm-up procedure.
The engine keeps running at the Minimum RPM, until the Coolant Water Temperature has reached
the Warm-up Temperature setting (40°C / 104°F).

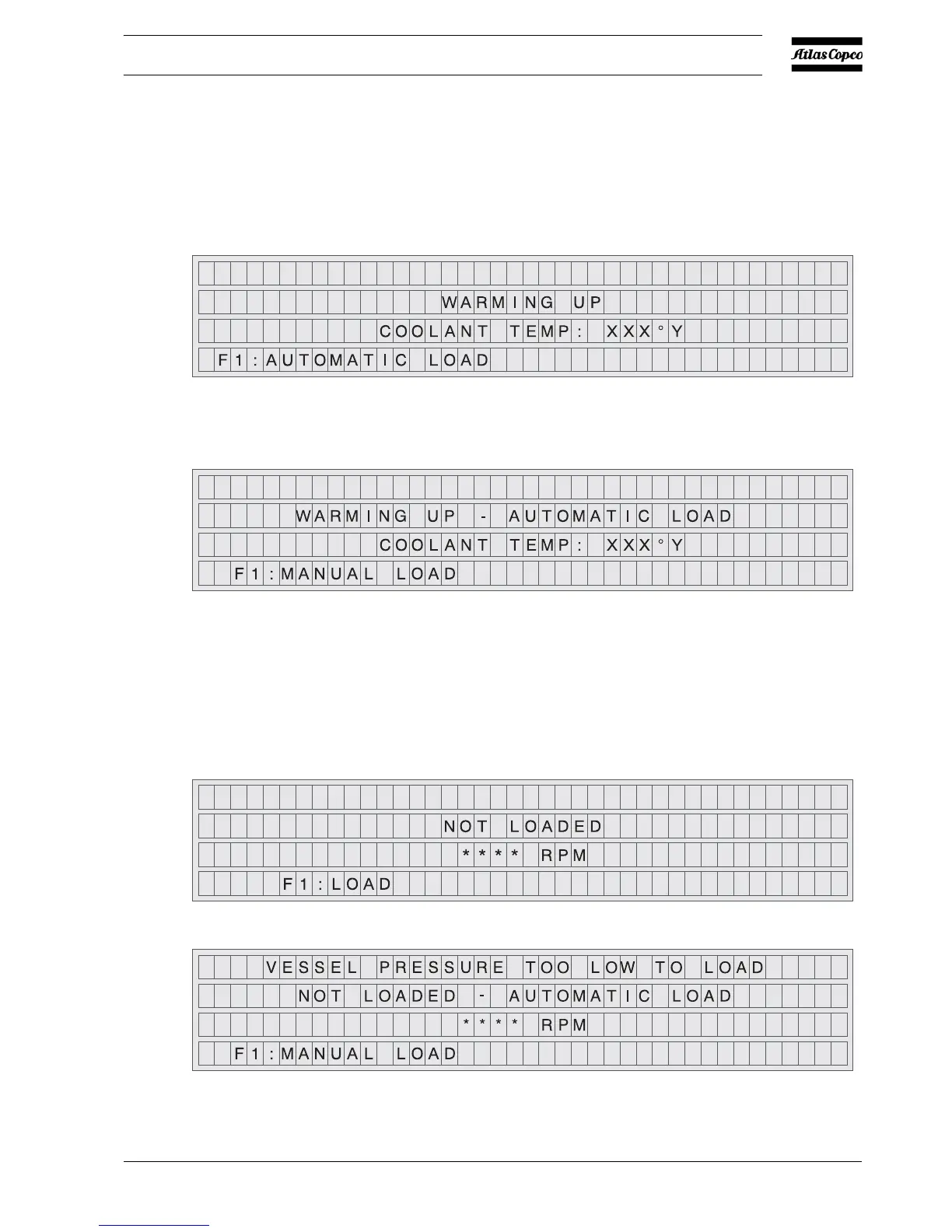

The display will show:
If the button “F1” is pressed during the warm-up process the engine will first warm-up before
automatically switching to LOAD.
The display will show:
If the button “F1” is pressed after warming up, the compressor immediately will enter the LOAD
status. The pressure will rise till it the reaches setting.
If the Warm-up Temperature has not been reached after 5 minutes, the Warm-up procedure will be
ended, and the Control Box will proceed to the NOT LOADED status.
After warming up the engine will run idle.
The engine rpm is shown on the display.
The display will show:
or
For entering the LOAD status the button “F1” has to be pressed.
